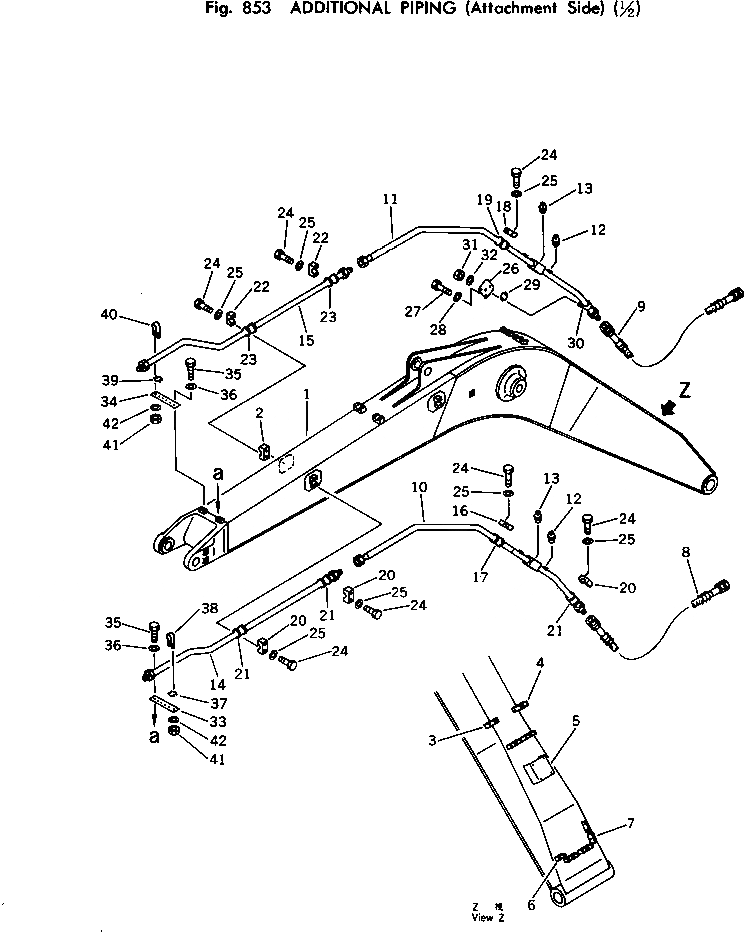

Запчасти Komatsu PC150LC-1 ДОПОЛН. ГИДРОЛИНИЯ (НАВЕСН. ОБОРУД) (/) ОПЦИОННЫЕ КОМПОНЕНТЫ

1

21K-973-1470

BOOM

2

21K-973-1440

CLAMP (WELDED)

3

21K-973-1390

CLAMP (WELDED)

4

21K-973-1420

CLAMP (WELDED)

5

21K-973-1430

BRACKET (WELDED)

6

21K-62-15331

CLAMP (WELDED)

7

01573-22309

SEAT (WELDED)

8

07121-00610

HOSE

9

21K-973-1570

HOSE

10

21K-973-1330

TUBE

11

21K-973-1340

TUBE

12

07042-20108

PLUG

13

07042-00617

PLUG

14

21K-973-1350

TUBE

15

21K-973-1360

TUBE

16

21K-973-1380

CLAMP

17

21K-62-12250

CUSHION

18

21K-973-1410

CLAMP

19

21K-973-1450

CUSHION

20

21K-62-15340

CLAMP

21

21K-62-12250

CUSHION

22

21K-973-1560

CLAMP

23

21K-973-1450

CUSHION

24

01010-51260

BOLT

25

01643-31232

WASHER

26

21K-973-1540

PLATE

27

01010-51225

BOLT

28

01643-31232

WASHER

29

07283-53444

SEAT

30

07283-23442

CLIP

31

01599-01011

NUT

32

01643-31032

WASHER

33

21K-973-1280

PLATE

34

21K-973-1460

PLATE

35

01010-51225

BOLT

36

01643-31232

WASHER

37

07283-52737

SEAT

38

07283-22738

CLIP

39

07283-53444

SEAT

40

07283-23442

CLIP

41

01599-01011

NUT

42

01643-31032

WASHER
