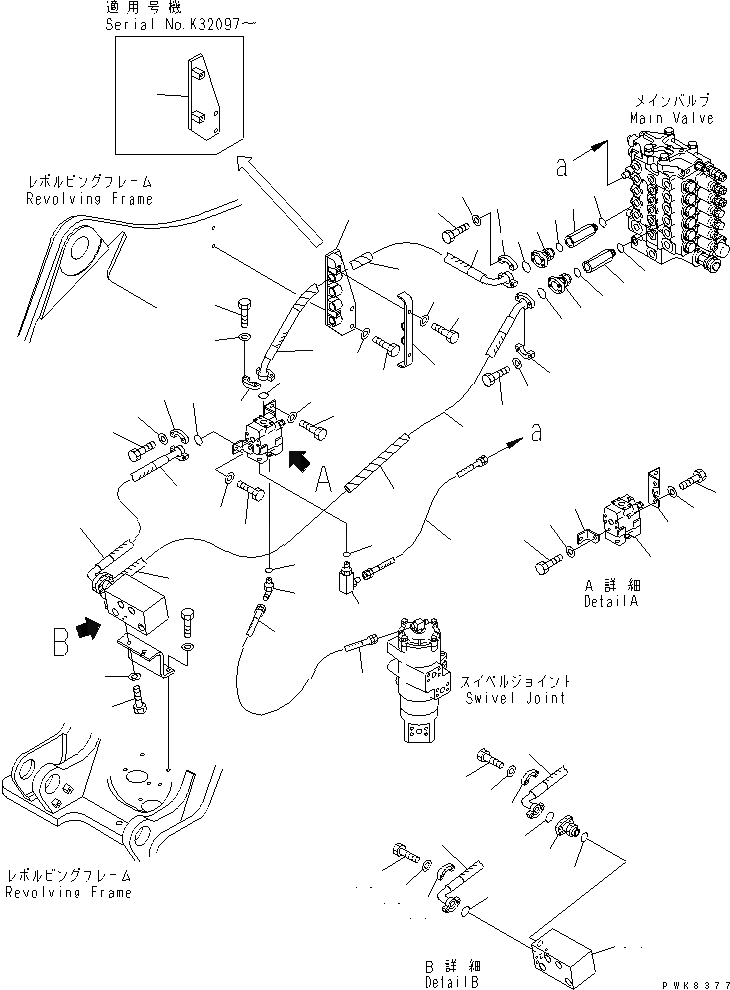

Запчасти Komatsu PC150-6K ПРЕДОТВРАЩ. СМЕЩЕНИЯ (ОСНОВНАЯ РАМА)(№K-) ГИДРАВЛИКА

1

20G-62-K7330

HOSE

2

21P-62-K2961

HOSE

3

203-62-58650

COVER

4

21P-62-K2840

ADAPTER

5

21P-62-K2840

ADAPTER

6

21K-62-34310

FLANGE

7

07002-12434

O-RING

8

07000-13025

O-RING

9

07000-13025

O-RING

10

07371-30640

FLANGE,SPLIT

11

07371-30640

FLANGE,SPLIT

12

07371-30640

FLANGE,SPLIT

13

07000-13032

O-RING

14

07371-31049

FLANGE,SPLIT

15

07372-21035

BOLT

16

07372-21035

BOLT

17

07372-21035

BOLT

18

01643-51032

WASHER

19

01643-51032

WASHER

20

01643-51032

WASHER

21

21K-62-34310

FLANGE

22

07002-12434

O-RING

23

21P-62-K4770

HOSE

|23

21P-62-K4580

HOSE

24

07000-13025

O-RING

25

07371-30640

FLANGE,SPLIT

26

07372-21035

BOLT

27

01643-51032

WASHER

28

07102-20211

HOSE

29

07235-10212

ELBOW

30

07002-11423

O-RING

31

07102-20409

HOSE

32

07235-10422

ELBOW

33

07002-12034

O-RING

34

21P-62-K3441

MANIFOLD

35

01010-81230

BOLT

36

01643-31232

WASHER

37

21P-62-K2343

CLAMP

|37

21P-62-K2342

CLAMP

38

01010-81230

BOLT

39

01643-31232

WASHER

40

21P-62-K2330

BRACKET

41

01010-81025

BOLT

42

01643-31032

WASHER

43

702-21-04220

VALVE ASS'Y,(SEE FIG.Y1675-01A0)

44

01010-81020

BOLT

45

01643-31032

WASHER

46

21P-62-K3110

PLATE

47

21P-62-K3120

PLATE

48

01010-81220

BOLT

49

01643-31232

WASHER
