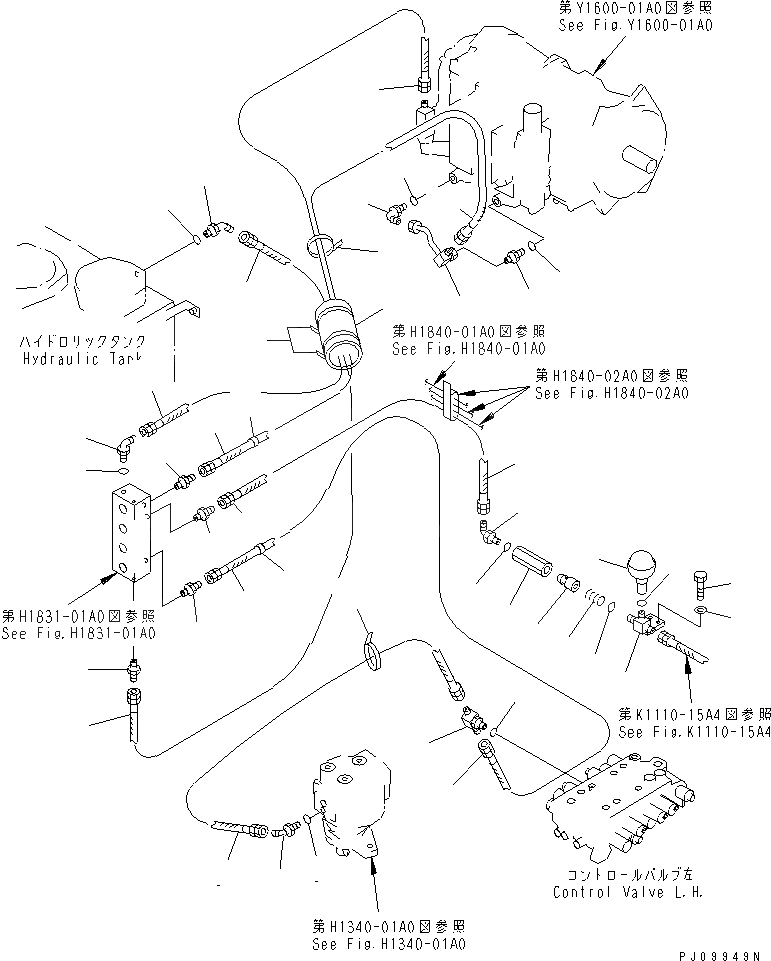

Запчасти Komatsu PC150-5 ГИДРОЛИНИЯ (ГЛАВН. ТРУБЫ) (/) ГИДРАВЛИКА

1

203-62-52280

HOSE, 900MM

1

07102-20209

HOSE

2

203-62-58150

MARK, A4

3

203-62-52280

HOSE, 900MM

3

07102-20209

HOSE

4

07238-10210

CONNECTOR

5

203-62-58420

TEE

6

07002-01423

O-RING

7

07235-10210

ELBOW

8

07002-01423

O-RING

9

21K-62-34790

TUBE

10

203-62-52530

HOSE, 800MM

10

07102-20208

HOSE

11

203-62-58520

MARK, A1

12

07235-10210

ELBOW

13

07002-01423

O-RING

14

07230-20210

UNION

15

07002-01423

O-RING

16

07238-10210

CONNECTOR

17

203-62-52430

HOSE, 700MM

17

07102-20307

HOSE

18

07235-10315

ELBOW

19

07002-02034

O-RING

20

07236-10315

ELBOW

21

07002-02034

O-RING

22

07102-20411

HOSE

23

07238-10315

CONNECTOR

24

201-62-66780

HOSE, 1400MM

24

07102-20314

HOSE

25

07238-10422

CONNECTOR

26

07235-10315

ELBOW

27

07002-02034

O-RING

|$33

203-62-57600

VALVE ASS'Y

28

203-62-57650

TEE

29

BODY

30

07002-02034

O-RING

31

20X-62-21950

VALVE

32

203-60-21260

SPRING

33

07002-02034

O-RING

34

20Y-60-11410

ACCUMULATOR

35

01010-81025

BOLT

35

01010-51025

BOLT

36

01643-31032

WASHER

37

203-62-41150

COVER

38

08034-00823

BAND

39

08034-00519

BAND
