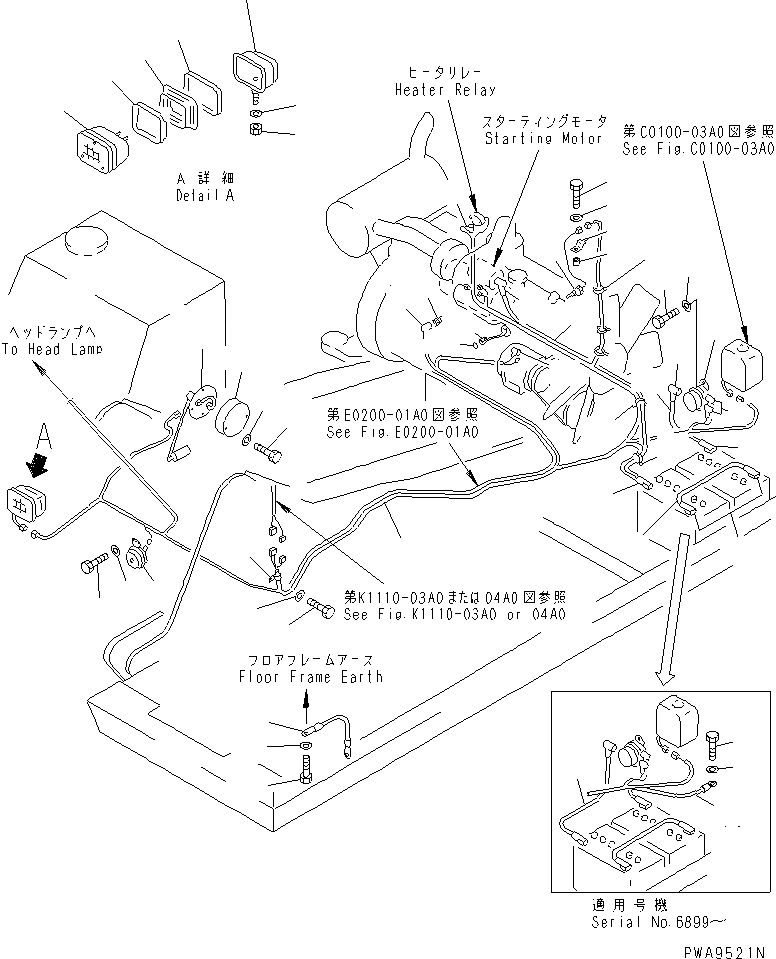

Запчасти Komatsu PC150-5 ЭЛЕКТРИКА (РАБОЧ. ОСВЕЩЕНИЕ¤ ЗВУК. СИГНАЛ. AND ДАТЧИК ЛИНИЯ) ЭЛЕКТРИКА

1

21K-06-33112

WIRING HARNESS

1

21K-06-33111

WIRING HARNESS

1

203-06-57241

FUSIBLE LINK

1

203-06-57270

LINK,(CN-M59)

1

22W-06-13590

DIODE

2

08073-00503

SWITCH

3

08038-10519

CAP

4

22W-06-13220

SWITCH,BATTERY RELAY

4

08088-10000

SWITCH,BATTERY RELAY

5

01010-80825

BOLT

5

01010-50825

BOLT

5

01010-50816

BOLT

6

01643-30823

WASHER

7

08038-00519

CAP

8

08038-04030

CAP

9

7861-92-3320

SENSOR,ENGINE WATER TEMP.

10

08053-01512

CLIP

11

195-979-5190

COLLAR

12

01010-81080

BOLT

12

01010-51080

BOLT

13

01643-31032

WASHER

14

7861-92-4210

SENSOR,ENGINE OIL LEVEL

15

7861-91-4220

O-RING

16

7861-92-4800

SENSOR,FUEL LEVEL

17

201-06-62310

COVER

18

01010-81070

BOLT

18

01010-51070

BOLT

19

01643-31032

WASHER

20

08160-62430

HORN

20

08160-52400

HORN

21

01010-80816

BOLT

21

01010-50816

BOLT

22

01643-30823

WASHER

|$38

203-06-56140

LAMP ASS'Y

23

HOUSING

24

22W-06-12170

BULB

25

203-06-56180

RING

26

22W-06-12290

CUSHION

27

203-06-56190

RING

28

01582-11411

NUT

29

01643-31445

WASHER

30

08036-01814

CLIP

31

01010-81020

BOLT

31

01010-51020

BOLT

32

01643-31032

WASHER

33

21K-06-33151

BATTERY CABLE

33

21K-06-33150

WIRE

34

08038-42511

CAP

34

08038-22511

CAP

35

08028-48055

CABLE

35

203-06-54220

CABLE

36

08038-22009

CAP

37

08028-48035

CABLE

37

20X-06-21160

WIRE

38

08038-42009

CAP

38

08038-22009

CAP

39

08028-42025

CABLE

40

01010-81020

BOLT

40

01010-51020

BOLT

41

01643-31032

WASHER

42

08038-10519

CAP

43

08038-04030

CAP

44

08034-00519

BAND

45

08034-00536

BAND

46

08028-68035

CABLE

46

20X-06-21160

WIRE,GROUND CONNECTION

47

01010-81025

BOLT

47

01010-51025

BOLT

48

01643-31032

WASHER
