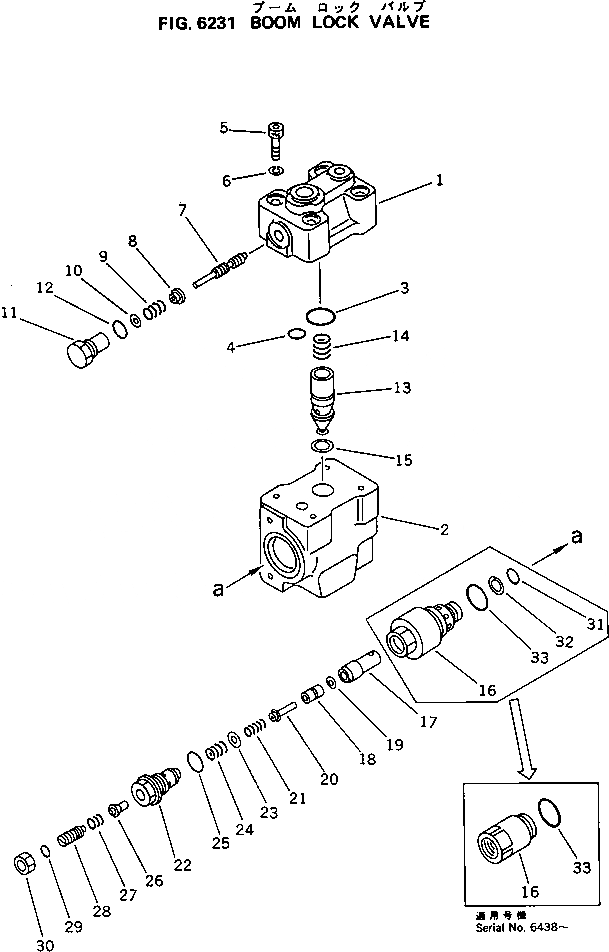

Запчасти Komatsu PC150-5 СТОПОРН. КЛАПАН ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|$2

702-21-04430

VALVE ASS'Y

|$3

702-21-04420

VALVE ASS'Y

1

BODY,B

2

702-21-35162

BODY,A

2

702-21-33111

BODY,A

3

07000-13030

O-RING

4

07000-02020

O-RING

5

706-73-40330

BOLT

6

01602-21030

WASHER

7

SPOOL

8

702-21-31350

SEAT

9

702-21-31231

SPRING

10

702-21-31360

SPACER

11

702-21-31241

PLUG

12

07002-01823

O-RING

13

702-21-35141

VALVE,CHECK

14

702-21-35120

SPRING

15

702-21-35130

SEAL

|$22

709-70-74402

VALVE ASS'Y,SUCTION AND SAFETY

|$23

709-70-72203

VALVE ASS'Y,SUCTION AND SAFETY

16

709-70-71112

SLEEVE

16

709-70-71522

SLEEVE

17

SLEEVE

18

POPPET

19

SEAL

20

PISTON

21

709-70-71210

SPRING

22

PLUG

23

SEAL

24

709-70-71220

SPRING

25

07002-02434

O-RING

26

POPPET

27

SPRING

28

SCREW

29

O-RING

30

NUT

31

07000-12018

O-RING

32

07001-02018

RING,BACK-UP

33

709-25-11390

O-RING

33

07002-03634

O-RING
