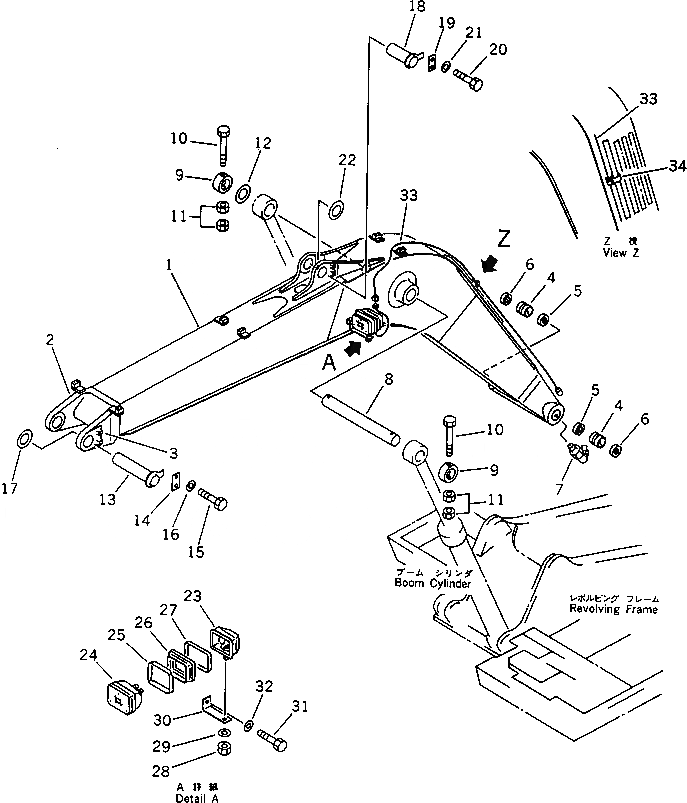

Запчасти Komatsu PC150-5 СТРЕЛА РАБОЧЕЕ ОБОРУДОВАНИЕ

|$1

21P-70-00510

BOOM ASS'Y

|$2

21K-70-00511

BOOM ASS'Y

|$3

21K-973-0040

BOOM ASS'Y,(FOR ATTACHMENT)

|$4

21K-973-0010

BOOM ASS'Y,(FOR ATTACHMENT)

1

BOOM

1

BOOM

1

VALVE ASS'Y,(FOR ATTACHMENT)

1

BOOM,(FOR ATTACHMENT)

2

21K-70-31120

BRACKET (WELDED)

3

566-16-11240

BOSS (WELDED)

4

21K-70-31390

BUSHING

5

07145-00080

SEAL,DUST

6

07145-00080

SEAL,DUST

7

07020-00900

FITTING,GREASE

8

21K-70-31360

PIN

9

21K-70-31330

PLATE

10

01019-11640

BOLT

11

01580-11613

NUT

12

203-70-24170

SPACER, 1.0MM

13

21K-70-31170

PIN

14

21K-70-31320

PLATE

15

01010-81235

BOLT

15

01010-51235

BOLT

16

01643-31232

WASHER

17

21K-70-31370

SPACER, 0.5MM

17

205-70-51450

SPACER, 1.0MM

18

21K-70-21170

PIN

19

203-46-56270

PLATE

20

01010-81230

BOLT

20

01010-51230

BOLT

21

01643-31232

WASHER

22

205-70-51450

SPACER, 1.0MM

|$33

203-06-56140

LAMP ASS'Y,WORK

23

HOUSING

24

22W-06-12170

BULB

25

203-06-56180

RING

26

22W-06-12290

CUSHION

27

203-06-56190

RING

28

01582-11411

NUT

29

01643-31445

WASHER

30

203-06-56410

BRACKET

31

01010-81430

BOLT

31

01010-51430

BOLT

32

01643-31445

WASHER

33

21K-06-33160

WIRE

34

203-06-56570

BAND
