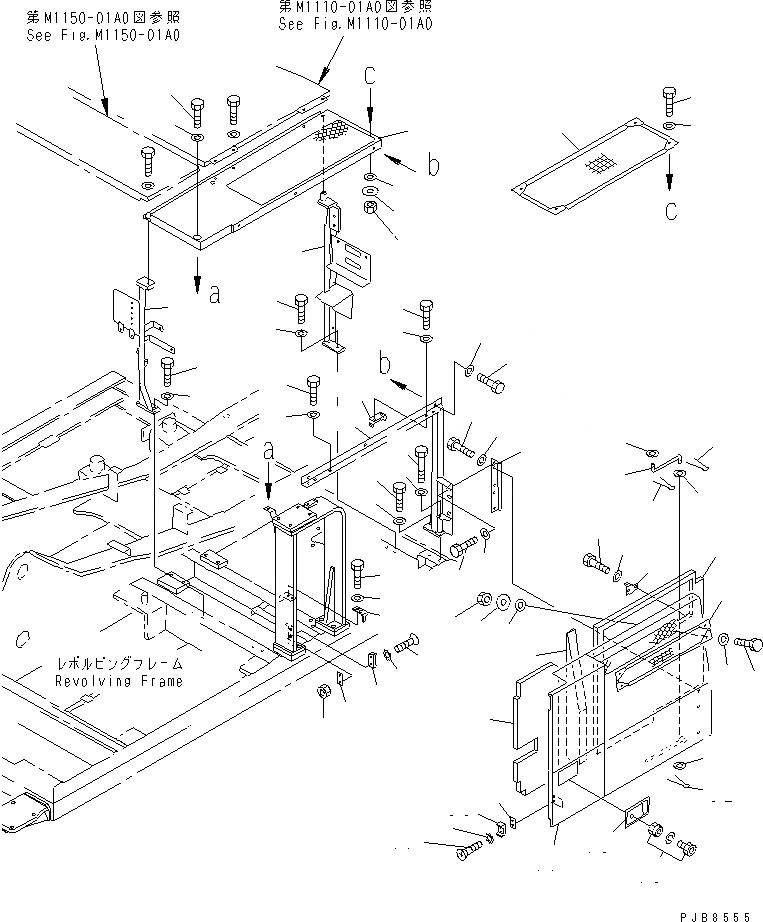

Запчасти Komatsu PC150-5 ЛЕВ. КРЫШКА(С F.O.P.S.)(№79-) ЧАСТИ КОРПУСА

1

21K-956-3120

BRACKET

2

01010-81030

BOLT

3

01643-31032

WASHER

4

01011-81030

BOLT

5

01643-31032

WASHER

6

01010-81025

BOLT

7

01643-31032

WASHER

8

21K-956-3130

BRACKET

9

01010-81025

BOLT

10

01643-31032

WASHER

11

21K-54-33252

BRACKET

12

01010-81030

BOLT

13

01643-31032

WASHER

14

21K-956-3170

COVER

15

01010-81025

BOLT

16

01643-31032

WASHER

|$22

21P-956-2231

COVER ASS'Y

17

COVER

18

421-54-11372

LOCK ASS'Y (WELDED)

19

421-54-11381

LOCK

20

21P-956-2240

SHEET

21

21K-54-39710

SHEET

22

203-956-5250

SHEET

23

203-54-52411

HINGE

24

01010-81225

BOLT

25

01643-31232

WASHER

26

01010-81230

BOLT

27

01643-31232

WASHER

28

21P-956-2170

PLATE

29

01010-81025

BOLT

30

01643-31032

WASHER

31

21K-54-33610

BAR

32

04050-13018

PIN,COTTER

33

01642-21016

WASHER

34

566-54-13410

STRIKER

35

203-54-56790

PLATE

36

01225-40820

SCREW

37

566-54-13570

WASHER

38

01580-00806

NUT

39

566-54-14420

STOPPER

40

203-54-52610

PLATE

41

01225-40820

SCREW

42

566-54-13570

WASHER

43

203-54-56810

BRACKET

44

01010-81025

BOLT

45

01643-31032

WASHER

46

203-54-56820

CLAMP

47

01010-81016

BOLT

48

01643-31032

WASHER

49

01010-81020

BOLT

50

01643-31032

WASHER

51

21K-54-33710

NET,(FOR DIRT PROTECTION)

52

21K-54-33720

NET,(FOR DIRT PROTECTION)

53

01010-80825

BOLT,(FOR DIRT PROTECTION)

54

01643-30823

WASHER,(FOR DIRT PROTECTION)

55

203-54-56970

WASHER,(FOR DIRT PROTECTION)

56

01580-10806

NUT,(FOR DIRT PROTECTION)

57

01643-30823

WASHER,(FOR DIRT PROTECTION)
