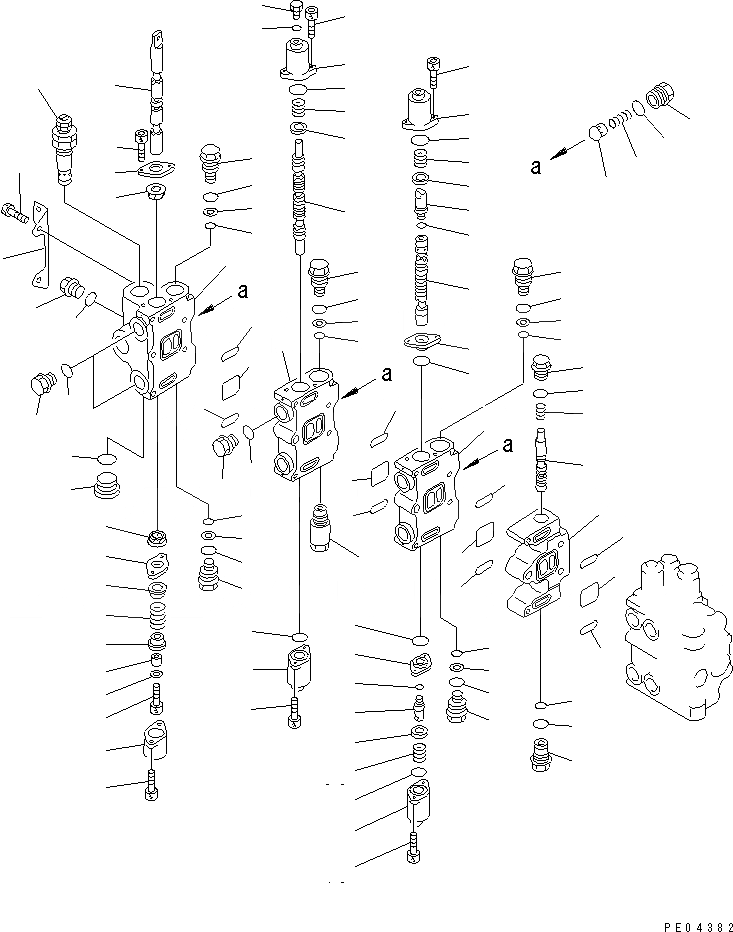

Запчасти Komatsu PC150-5 ОСНОВН. КЛАПАН (/) (ЛЕВ.) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|1

700-86-47000

VALVE ASS'Y

1

BODY,VALVE

2

BLOCK,VALVE

3

BLOCK,VALVE

4

BLOCK,VALVE

5

07000-03038

O-RING

6

07000-13050

O-RING

7

700-84-11330

BRACKET

8

01010-81020

BOLT

9

709-74-91860

PLUG

10

07002-12434

O-RING

11

700-42-31460

VALVE

12

700-42-31470

SPRING

13

700-84-11320

PLUG

14

07002-13034

O-RING

15

07040-13316

PLUG

16

07002-13334

O-RING

17

709-74-91510

PLUG

18

07000-11009

O-RING

19

709-74-91530

RING

20

709-25-11390

O-RING

21

SPOOL

22

SPOOL

23

SPOOL

24

SPOOL

25

700-84-11650

SPRING

26

700-84-13711

RETAINER

27

700-84-11641

COLLAR

28

01252-30830

BOLT

29

01643-30823

WASHER

30

700-84-11390

COVER

31

700-84-13891

PLATE

32

700-84-13910

SEAL

33

01252-30612

BOLT

34

700-84-15720

SPRING

35

700-84-15740

SPRING

36

700-84-13790

JOINT

37

07002-11223

O-RING

38

700-84-13781

RETAINER

39

700-84-13490

PLATE

40

700-84-12510

CASE

41

700-84-11240

O-RING

42

01252-30616

BOLT

43

01252-30625

BOLT

44

07040-11409

PLUG

45

07002-01423

O-RING

46

700-84-13570

SPRING

47

700-84-13870

PLUG

48

07002-02434

O-RING

49

700-84-13510

NIPPLE

50

07000-02015

O-RING

51

07002-02434

O-RING

52

709-80-52900

RELIEF VALVE ASS'Y

53

709-20-81201

VALVE ASS'Y,SUCTION
