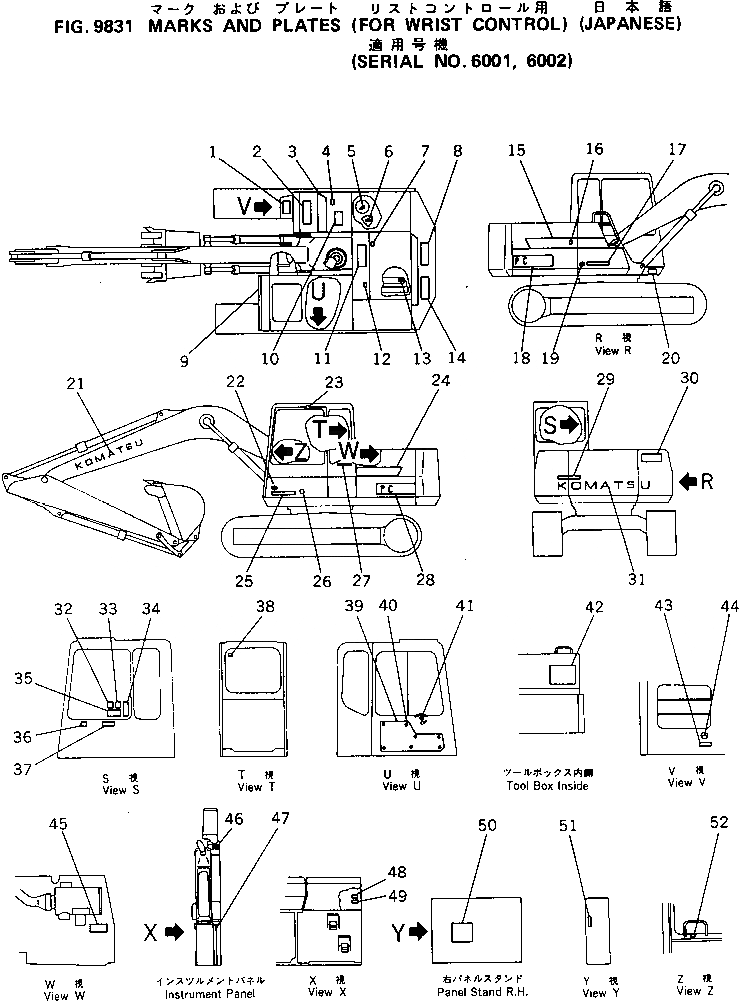

Запчасти Komatsu PC150-5 МАРКИРОВКА (ЯПОН.) (ДЛЯ WRIST УПРАВЛ-Е) (KOMATSU PATTERN)(№-) МАРКИРОВКА

1

203-00-51170

SEAT,NONSKID

2

154-54-23260

SEAT,NONSKID

3

203-00-51280

PLATE¤ MARK,LINE

4

09652-01121

PLATE¤ CAUTION,FUEL

5

201-54-21940

PLATE¤ CAUTION,HYDRAULIC TANK CAP

6

09653-00100

PLATE¤ SAFETY,HYDRAULIC TANK CAP

7

09667-00100

PLATE¤ SAFETY,ENGINE COVER

8

154-54-23260

SEAT,NONSKID

9

20Y-00-11490

PLATE

10

203-00-51170

SEAT,NONSKID

11

154-54-23260

SEAT,NONSKID

12

09650-01104

PLATE¤ INSTRUCTION,RADIATOR

13

09668-00100

PLATE¤ SAFETY,RADIATOR CAP

14

154-54-23260

SEAT,NONSKID

15

21K-00-33150

PLATE¤ MARK,LINE

16

203-00-31120

PLATE¤ INSTRUCTION,HYDRAULIC OIL LEVEL

17

09690-50400

PLATE¤ MARK,KOMATSU

18

21K-00-33110

PLATE¤ MARK,PC150

19

09694-50125

PLATE¤ MARK,SYMBOL

20

09602-01635

PLATE¤ NAME,(LIMITED SUPPLY)

|20

04418-13060

SCREW

21

203-00-51131

PLATE¤ MARK,KOMATSU

22

09694-50125

PLATE¤ MARK,SYMBOL

23

20Y-00-11350

PLATE

24

21K-00-33140

PLATE¤ MARK,LINE

25

09690-50400

PLATE¤ MARK,KOMATSU

26

20Y-00-11350

PLATE

27

20Y-00-11481

PLATE¤ MARK,AVANCE

28

21K-00-33110

PLATE¤ MARK,PC150

29

20Y-00-11520

PLATE¤ MARK,AVANCE

30

203-00-51210

PLATE¤ CAUTION,KEEP OUT OF TURNING AREA

31

203-00-41131

PLATE¤ MARK,KOMATSU

32

203-00-52130

PLATE¤ OPERATING,SYMBOL MARK

33

203-00-52150

PLATE¤ CAUTION,LEAVING SEAT

34

203-00-52161

PLATE¤ CAUTION,BEFORE OPERATING

35

203-00-52250

PLATE,MONITOR PANEL

36

20Y-00-11310

PLATE¤ OPERATING,KOMATSU PATTERN

37

203-00-52280

PLATE¤ CAUTION,ENGINE STARTING

38

205-00-63230

PLATE¤ CAUTION,AUTO LOCK

39

20Y-54-13473

COVER

40

20Y-54-14560

CLIP ASS'Y

41

205-00-71340

PLATE¤ OPERATING,DOOR LOCK

42

21K-00-33120

CHART¤ OIL

43

09685-00003

PLATE¤ OPERATING,LOCK

44

203-00-52290

PLATE¤ OPERATING,LOCK

45

09641-01660

PLATE¤ INSTRUCTION,AIR CLEANER (SINGLE ELEMENT)

46

203-00-52260

PLATE¤ OPERATING,WINDOW WASHER

47

203-00-52220

PLATE

48

203-00-52230

PLATE¤ OPERATING,T.V.C. PROLIX

49

203-00-52240

PLATE¤ OPERATING,SWING PROLIX

50

21K-00-33130

PLATE¤ DATA

51

09685-00002

PLATE¤ OPERATING,LOCK LEVER

52

203-00-52190

PLATE¤ CAUTION,FRONT WINDOW
