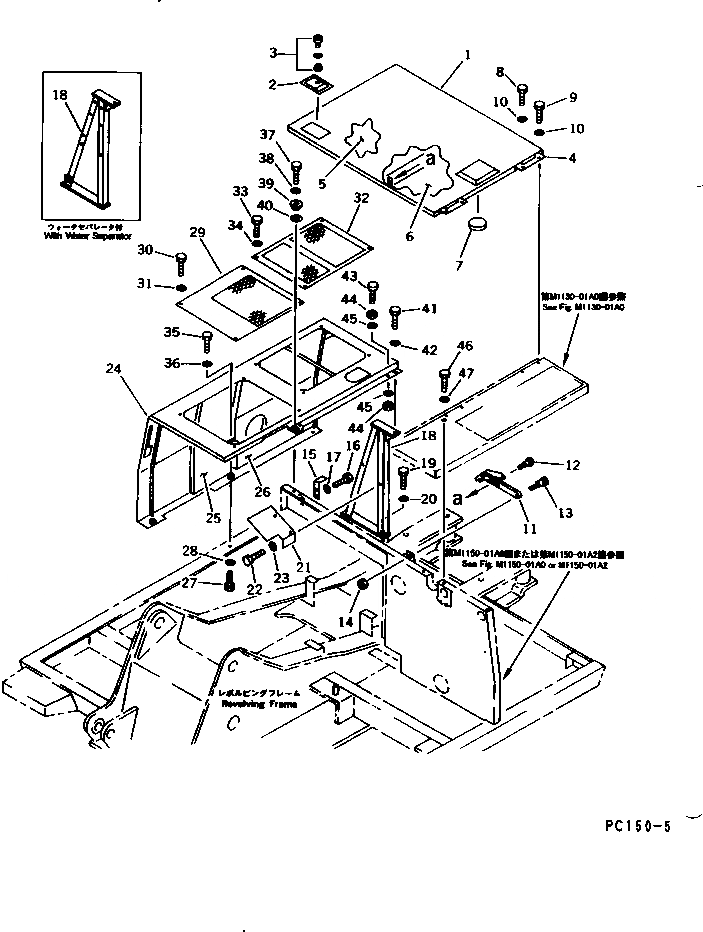

Запчасти Komatsu PC150-5 ПРАВ. COVER ЧАСТИ КОРПУСА

|1

21K-54-33640

COVER ASS'Y

|1

21K-54-33381

COVER ASS'Y

1

COVER

|1

COVER

2

421-54-11372

LOCK ASS'Y (WELDED)

3

421-54-11381

LOCK

4

203-54-52241

HINGE (WELDED)

5

21K-54-33540

SHEET

|5

21K-54-33540

SHEET

6

21K-54-33530

SHEET

7

21K-54-33630

SHEET

8

01010-81025

BOLT

|8

01010-51025

BOLT

9

01010-81030

BOLT

|9

01010-51030

BOLT

10

01643-31032

WASHER

11

203-54-56910

STAY

12

20R-54-21450

BOLT

13

20R-54-21440

BOLT

14

01580-11008

NUT

15

203-54-52181

BRACKET

16

01010-81025

BOLT

|16

01010-51025

BOLT

17

01643-31032

WASHER

18

21K-54-33620

BRACKET

|18

21K-54-33740

BRACKET,(WITH WATER SEPARATOR)

19

01010-81025

BOLT

|19

01010-51025

BOLT

20

01643-31032

WASHER

21

21K-54-33451

COVER

22

01010-81020

BOLT

|22

01010-51020

BOLT

23

01643-31032

WASHER

|24

21K-54-33460

COVER ASS'Y

|24

21K-54-39850

COVER ASS'Y,(FOR VANDALISM PROTECTION)

24

COVER

25

21K-54-33470

SHEET

26

21K-54-33480

SHEET

27

01010-81020

BOLT

|27

01010-51020

BOLT

28

01643-31032

WASHER

29

21K-54-33311

COVER

30

01010-81020

BOLT

|30

01010-51020

BOLT

31

01643-31032

WASHER

32

21K-54-33590

COVER

33

01010-81020

BOLT

|33

01010-51020

BOLT

34

01643-31032

WASHER

35

01016-51040

BOLT

36

01643-31032

WASHER

37

01010-81035

BOLT

|37

01010-51035

BOLT

38

01643-31032

WASHER

39

203-54-56920

COLLAR

40

113-54-31350

SEAT

41

01010-81025

BOLT

|41

01010-51025

BOLT

42

01643-31032

WASHER

43

203-54-56710

STOPPER

44

01580-11008

NUT

45

01643-31032

WASHER

46

01010-81050

BOLT

|46

01010-51050

BOLT

47

01643-31032

WASHER
