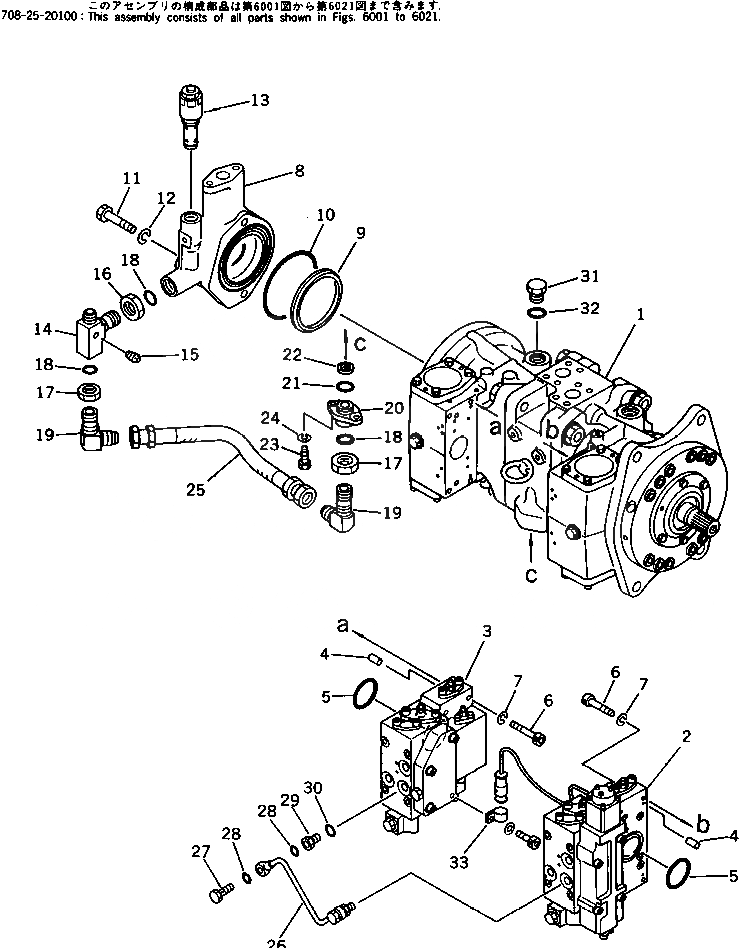

Запчасти Komatsu PC150-3 ГИДР. НАСОС.¤ БЛОК УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

708-25-20100

HYDRAULIC PUMP ASS'Y,(HPV71+71)

1

708-25-21100

PUMP SUB ASS'Y

2

708-25-25100

SERVO VALVE ASS'Y,FRONT

3

708-25-26100

SERVO VALVE ASS'Y,REAR

4

04020-00616

PIN,DOWEL

5

07000-03048

O-RING

6

708-25-19130

BOLT

7

01602-20825

WASHER,SPRING

8

704-24-28211

PUMP ASS'Y

9

708-25-22960

COLLAR

10

704-28-02710

O-RING

11

01010-31260

BOLT

12

01602-01236

WASHER,SPRING

13

708-23-14800

VALVE ASS'Y,RELIEF

14

708-25-29120

JOINT

15

07042-20108

PLUG

16

07239-12410

NUT

17

07239-12009

NUT

18

07002-02434

O-RING

19

07232-20422

ELBOW

20

708-25-19120

FLANGE

21

07002-02034

O-RING

22

720-68-15240

FILTER

23

01010-30820

BOLT

24

01602-20825

WASHER,SPRING

25

708-25-29110

HOSE

26

708-25-29140

TUBE

27

706-46-53180

BOLT,JOINT

28

07000-02012

O-RING

29

706-46-53260

PLUG

30

07002-01423

O-RING

31

07040-02412

PLUG

32

07002-02434

O-RING

33

08036-21814

CLIP
