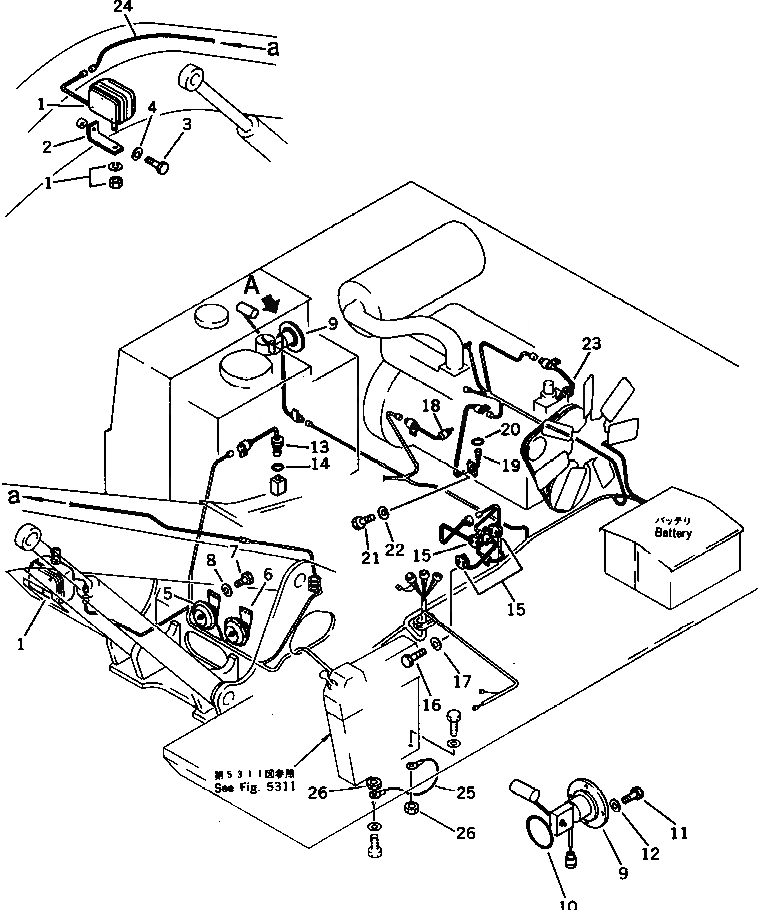

Запчасти Komatsu PC150-3 ЭЛЕКТРИКА (/) КОМПОНЕНТЫ ДВИГАТЕЛЯ И ЭЛЕКТРИКА

1

22W-06-12381

LAMP ASS'Y

|1

22W-06-12170

BULB¤ 24V

2

203-06-41130

BRACKET

3

01010-51430

BOLT

4

01643-31445

WASHER

5

08160-52400

HORN,HIGH

6

205-06-64430

HORN,LOW

7

01010-50816

BOLT

8

01602-20825

WASHER

9

7861-91-4700

SENSOR,FUEL

|9

7861-99-4700

SENSOR,FUEL

10

07000-02085

O-RING

11

01010-51025

BOLT

12

01643-31032

WASHER

13

7861-91-4500

SENSOR,HYDRAULIC OIL

|13

7861-99-4500

SENSOR,HYDRAULIC OIL

14

07002-23634

O-RING

15

22W-06-15861

SWITCH,AUTO DECELERATION

|15

22W-06-15860

SWITCH,AUTO DECELERATION

16

01010-51035

BOLT

17

01643-31032

WASHER

18

7861-99-1300

SENSOR,OIL PRESSURE

19

203-06-41160

SENSOR,ENGINE OIL LEVEL

20

07000-63050

O-RING

21

01010-50816

BOLT

22

01602-20825

WASHER,SPRING

23

7861-91-3310

SENSOR,WATER TEMPERATURE

|23

7861-99-3300

SENSOR,WATER TEMPERATURE

24

203-06-41781

WIRE

|24

203-06-41780

WIRE

25

08028-12025

CABLE

26

01580-11008

NUT
