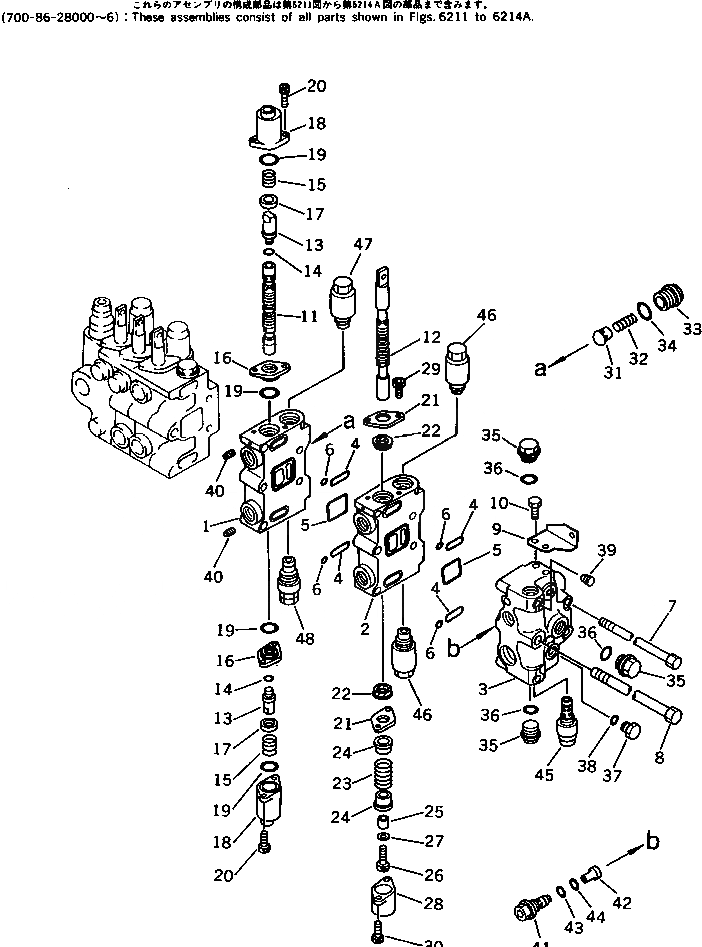

Запчасти Komatsu PC150-3 УПРАВЛЯЮЩ. КЛАПАН¤ ЛЕВ. (/) (ДЛЯ WRIST УПРАВЛ-Е) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ
№
Артикул
Название
Примечание
Количество
|1
700-86-28006
CONTROL VALVE ASS'Y,L.H.
|1
700-86-28005
CONTROL VALVE ASS'Y,L.H.
|1
700-86-28004
CONTROL VALVE ASS'Y,L.H.
|1
700-86-28003
CONTROL VALVE ASS'Y,L.H.
|1
700-86-28002
CONTROL VALVE ASS'Y,L.H.
|1
700-86-28001
CONTROL VALVE ASS'Y,L.H.
|1
700-86-28000
CONTROL VALVE ASS'Y,L.H.
1
BLOCK,VALVE
|1
BLOCK,VALVE
2
BLOCK,VALVE
|2
BLOCK,VALVE
|2
BLOCK,VALVE
3
COVER,VALVE
|3
COVER,VALVE
4
07000-03038
O-RING
|4
07000-03030
O-RING
5
07000-13050
O-RING
6
07000-01007
O-RING
7
700-87-11110
BOLT
8
700-87-11120
BOLT
9
700-84-13830
BRACKET
10
01010-51020
BOLT
11
SPOOL,ARM LOW
12
SPOOL,L.H. TRAVEL
13
700-84-13790
JOINT
14
07002-11223
O-RING
15
700-84-13770
SPRING
16
700-84-13490
PLATE
17
700-84-13781
RETAINER
18
700-84-12510
CASE
19
700-86-11240
O-RING
20
01252-30625
BOLT
21
700-84-13891
PLATE
22
700-84-13910
SEAL
23
700-86-11650
SPRING
24
700-84-13711
RETAINER
25
700-84-11641
COLLAR
26
01252-30830
BOLT
27
01643-30823
WASHER
28
700-84-11390
COVER
29
01252-30612
BOLT
30
01252-30625
BOLT
31
700-42-31460
VALVE
32
700-42-31470
SPRING
33
700-84-11320
PLUG
34
07002-13034
O-RING
35
700-22-11370
PLUG
36
07002-12434
O-RING
37
07040-11409
PLUG
38
07002-01423
O-RING
39
07043-70108
PLUG
40
706-86-51170
PLUG
|41
709-70-91300
ORIFICE ASS'Y
41
ORIFICE
42
SENSOR
43
07000-02014
O-RING
44
07002-02434
O-RING
45
709-70-55103
RELIEF VALVE ASS'Y
|45
709-70-55102
RELIEF VALVE ASS'Y
|45
709-70-55101
RELIEF VALVE ASS'Y
|45
709-70-55100
RELIEF VALVE ASS'Y
46
700-81-81000
VALVE ASS'Y,SUCTION
47
709-70-61201
VALVE ASS'Y,SUCTION AND SAFETY
|47
709-70-61200
VALVE ASS'Y,SUCTION AND SAFETY
48
709-70-61201
VALVE ASS'Y,SUCTION AND SAFETY
|48
709-70-62100
VALVE ASS'Y
Выбрано товаров: 66
