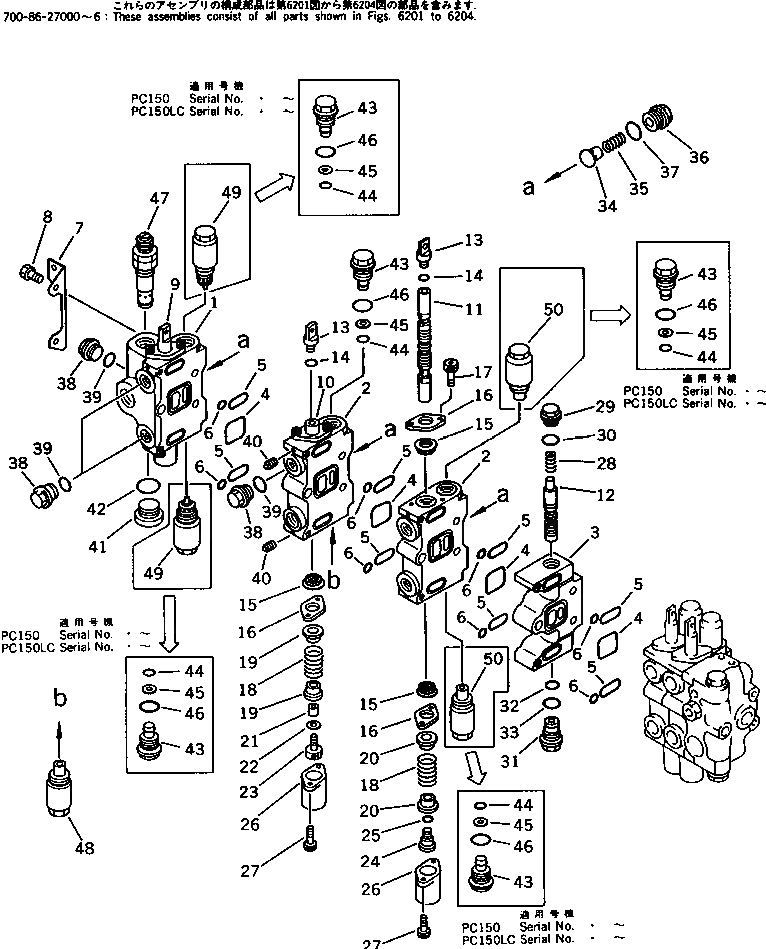

Запчасти Komatsu PC150-3 УПРАВЛЯЮЩ. КЛАПАН¤ ЛЕВ. (/) (ДЛЯ УДЛИНН. РЫЧАГ УПРАВЛ-Е) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ
№
Артикул
Название
Примечание
Количество
|1
700-86-27006
CONTROL VALVE ASS'Y,L.H.
|1
700-86-27005
CONTROL VALVE ASS'Y,L.H.
|1
700-86-27004
CONTROL VALVE ASS'Y,L.H.
|1
700-86-27003
CONTROL VALVE ASS'Y,L.H.
|1
700-86-27002
CONTROL VALVE ASS'Y,L.H.
|1
700-86-27001
CONTROL VALVE ASS'Y,L.H.
|1
700-86-27000
CONTROL VALVE ASS'Y,L.H.
1
BODY,VALVE
|1
BODY,VALVE
2
BLOCK,VALVE
|2
BLOCK,VALVE
3
BLOCK,VALVE
|3
BLOCK,VALVE
4
07000-13050
O-RING
5
07000-03038
O-RING
|5
07000-03030
O-RING
6
07000-01007
O-RING
7
700-84-11330
BRACKET
8
01010-51020
BOLT
9
SPOOL,SERVICE
10
SPOOL,BOOM HIGH
11
SPOOL,SWING
12
SPOOL
13
700-84-11870
JOINT
14
07002-11223
O-RING
15
700-84-13910
SEAL
16
700-84-13891
PLATE
17
01252-30612
BOLT
18
700-84-11650
SPRING
19
700-84-13711
RETAINER
20
700-84-13721
RETAINER
21
700-84-11641
COLLAR
22
01643-30823
WASHER
23
01252-30830
BOLT
24
700-84-11881
PLUG
25
07002-11223
O-RING
26
700-84-11390
COVER
27
01252-30625
BOLT
28
700-84-13570
SPRING
29
700-84-13870
PLUG
30
07002-02434
O-RING
31
700-84-13510
NIPPLE
32
07000-02015
O-RING
33
07002-02434
O-RING
34
700-42-31460
VALVE
35
700-42-31470
SPRING
36
700-84-11320
PLUG
37
07002-13034
O-RING
38
700-22-11370
PLUG
39
07002-12434
O-RING
40
706-86-51170
PLUG
41
07040-13316
PLUG
42
07002-13334
O-RING
43
700-84-13960
PLUG
|43
700-84-13960
PLUG
44
700-22-11410
O-RING
|44
700-22-11410
O-RING
45
700-80-64220
RING,BACK-UP
|45
700-80-64220
RING,BACK-UP
46
07002-03034
O-RING
|46
07002-03034
O-RING
47
700-87-56000
VALVE ASS'Y,RELIEF
48
700-81-66001
VALVE ASS'Y,SUCTION AND SAFETY
|48
700-81-66000
VALVE ASS'Y,SUCTION AND SAFETY
|48
700-81-81000
VALVE ASS'Y,SUCTION
49
709-70-61201
VALVE ASS'Y,SUCTION AND SAFETY
|49
709-70-61200
VALVE ASS'Y,SUCTION AND SAFETY
50
700-81-81000
VALVE ASS'Y,SUCTION
Выбрано товаров: 68
