Запчасти Komatsu PC150-3 МАРКИРОВКА (ДЛЯ УДЛИНН. РЫЧАГ УПРАВЛ-Е) (АНГЛ.) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

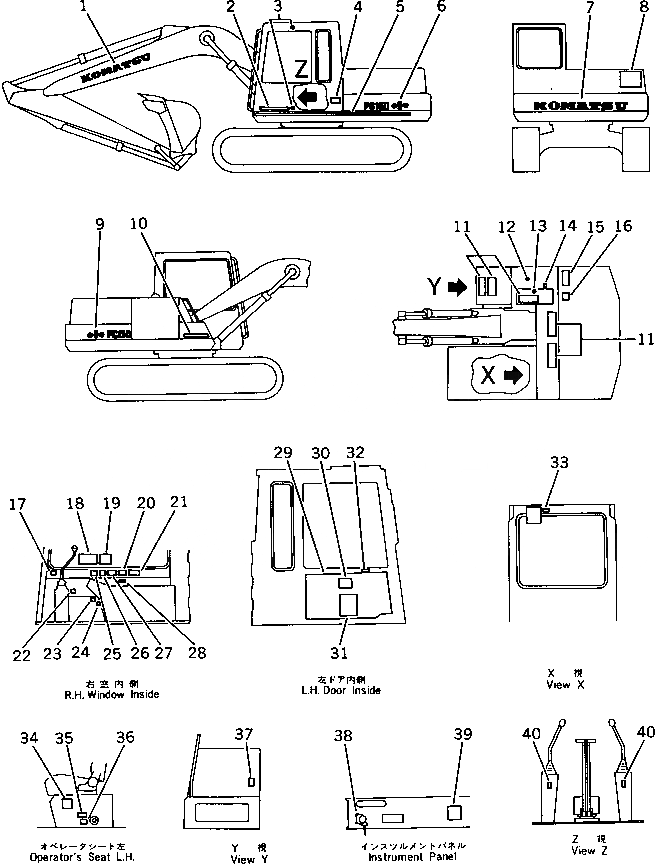

Схема запчастей Komatsu PC150-3 - МАРКИРОВКА (ДЛЯ УДЛИНН. РЫЧАГ УПРАВЛ-Е) (АНГЛ.) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

Артикул

Название

Примечание

Количество

1

09690-01250

PLATE, MARK,KOMATSU

2

09690-10500

PLATE, MARK,KOMATSU

3

205-00-63770

PLATE,GUARD

4

09602-01643

PLATE, NAME,(LIMITED SUPPLY)

4

01220-60408

SCREW

4

01601-20410

WASHER,SPRING

5

142-54-16170

STRIPE

6

21K-00-21130

PLATE, MARK,PC150

7

203-00-41130

PLATE, MARK,KOMATSU

8

09133-03000

PLATE, SAFETY,KEEP OUT OF TURNING AREA

9

21K-00-21140

PLATE, MARK,PC150

10

09690-10500

PLATE, MARK,KOMATSU

11

154-54-23260

SEAT,NONSKID

12

09669-00002

PLATE, CAUTION,FUEL

13

09669-00003

PLATE, CAUTION,HYDRAULIC OIL

14

09653-03000

PLATE, SAFETY,HYDRAULIC TANK CAP

15

205-00-65270

PLATE, CAUTION,RADIATOR WATER LEVEL

16

09668-03000

PLATE, SAFETY,RADIATOR CAP

17

205-00-63360

PLATE, CAUTION,FRONT WINDOW

18

205-00-66110

PLATE, OPERATING,WORK EQUIPMENT

19

205-00-75340

PLATE,SYMBOL

20

09649-03001

PLATE, INSTRUCTION,ENGINE STOP

21

205-00-63550

PLATE, CAUTION

22

205-00-63750

PLATE, CAUTION,WINDOW WASHER

23

09131-03000

PLATE, SAFETY,SWING LOCK LEVER

24

09685-00002

PLATE, OPERATING,SWING LOCK LEVER

25

205-00-63390

PLATE, CAUTION,STARTING

26

09651-03000

PLATE, SAFETY,BEFORE OPERATING

27

09173-03000

PLATE, SAFETY,INSPECTION AND MAINTENANCE

28

203-00-31350

PLATE, CAUTION,DECELERATOR

29

21K-54-25140

COVER

30

PLATE, CAUTION,LEAVING SEAT

31

CHART, OIL

32

205-00-71340

PLATE, OPERATING,DOOR LOCK

33

205-00-63350

PLATE, CAUTION,FRONT WINDOW

34

203-00-31340

PLATE, CAUTION,AUTO DECELERATION

35

09667-03000

PLATE, SAFETY,ENGINE COVER

36

203-00-41180

PLATE, OPERATING,ENGINE COVER

37

203-00-31120

PLATE, INSTRUCTION,HYDRAULIC TANK

38

09683-30060

PLATE, OPERATING,STARTING SWITCH

39

203-00-41311

PLATE, OPERATING,SWING BRAKE

40

09685-00001

PLATE, OPERATING,SAFETY LOCK LEVER

Выбрано товаров: 42
