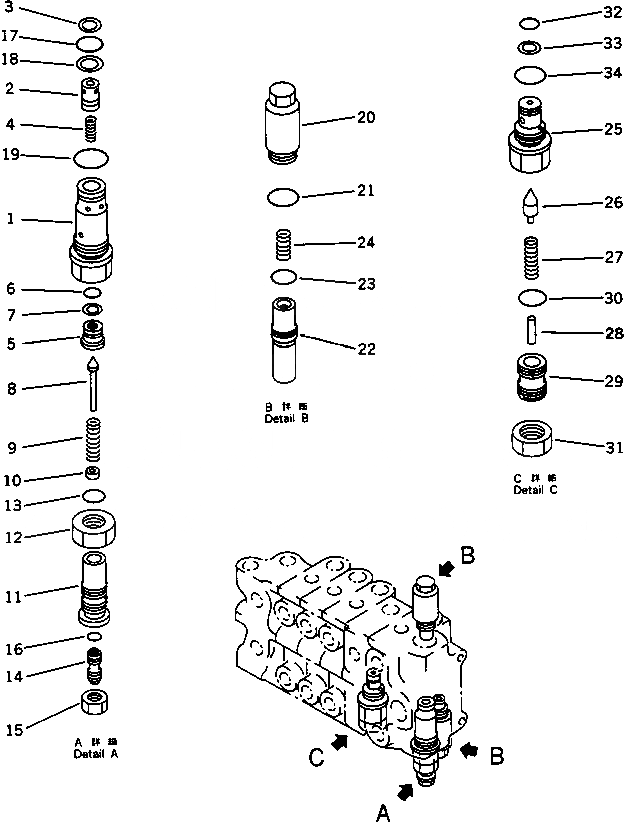

Запчасти Komatsu PC150-3 УПРАВЛЯЮЩ. КЛАПАН¤ ПРАВ. (/) (ДЛЯ УДЛИНН. РЫЧАГ УПРАВЛ-Е) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

700-85-28006

CONTROL VALVE ASS'Y,R.H.

|$1

700-85-28005

CONTROL VALVE ASS'Y,R.H.

|$2

700-85-28004

CONTROL VALVE ASS'Y,R.H.

|$3

700-85-28003

CONTROL VALVE ASS'Y,R.H.

|$4

700-85-28002

CONTROL VALVE ASS'Y,R.H.

|$5

700-85-28001

CONTROL VALVE ASS'Y,R.H.

|$6

700-85-28000

CONTROL VALVE ASS'Y,R.H.

|$8

700-87-56000

VALVE ASS'Y,RELIEF

1

SLEEVE

2

VALVE

3

700-80-51350

RING,SNAP

4

700-80-51390

SPRING

5

700-80-51740

SEAT

6

07000-22012

O-RING

7

07001-02012

RING,BACK-UP

8

700-80-61190

POPPET

9

709-20-51231

SPRING

10

709-90-51260

RETAINER

11

700-80-51360

HOLDER

12

07239-12410

NUT

13

07002-02434

O-RING

14

700-80-51630

SCREW

15

01582-11411

NUT

16

07000-02011

O-RING

17

700-13-31161

O-RING

18

700-80-51190

RING,BACK-UP

19

07002-03334

O-RING

|$28

700-81-81000

VALVE ASS'Y,SUCTION

20

700-80-62310

SLEEVE

21

07002-03034

O-RING

22

VALVE

23

SEAL

24

700-80-62250

SPRING

|$34

700-81-77000

SAFETY VALVE ASS'Y

25

SLEEVE

26

POPPET

27

SPRING

28

PIN

29

SCREW

30

O-RING

31

NUT

32

700-22-11410

O-RING

33

700-80-64220

RING,BACK-UP

34

07002-03034

O-RING
