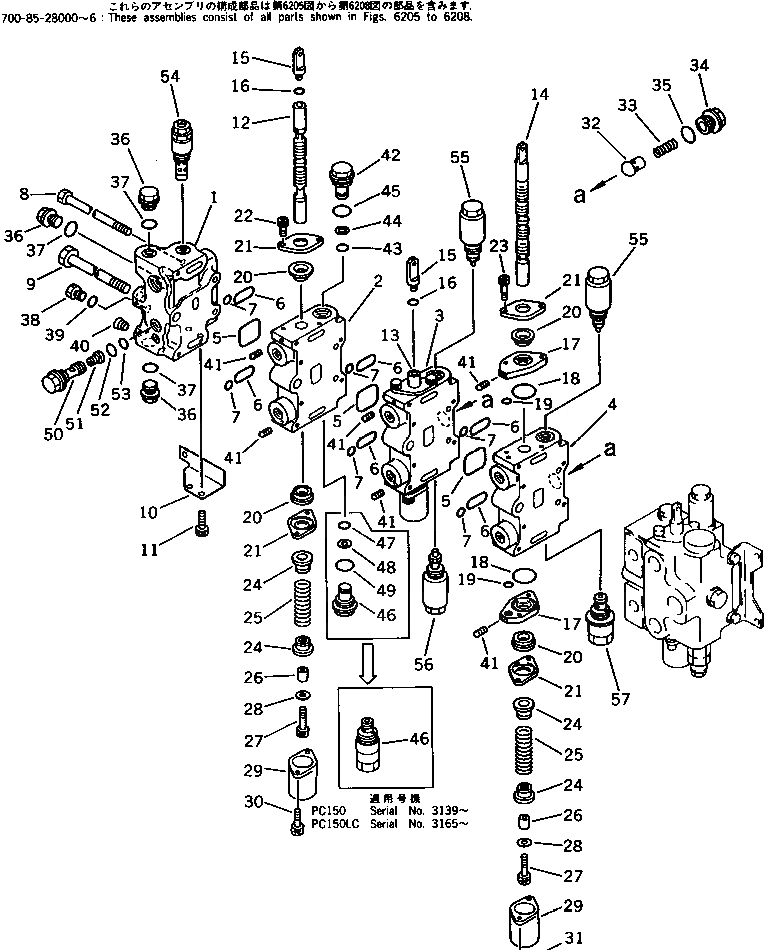

Запчасти Komatsu PC150-3 УПРАВЛЯЮЩ. КЛАПАН¤ ПРАВ. (/) (ДЛЯ УДЛИНН. РЫЧАГ УПРАВЛ-Е) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ
№
Артикул
Название
Примечание
Количество
|$0
700-85-28006
CONTROL VALVE ASS'Y,R.H.
|$1
700-85-28005
CONTROL VALVE ASS'Y,R.H.
|$2
700-85-28004
CONTROL VALVE ASS'Y,R.H.
|$3
700-85-28003
CONTROL VALVE ASS'Y,R.H.
|$4
700-85-28002
CONTROL VALVE ASS'Y,R.H.
|$5
700-85-28001
CONTROL VALVE ASS'Y,R.H.
|$6
700-85-28000
CONTROL VALVE ASS'Y,R.H.
1
COVER,VALVE
1
COVER,VALVE
2
BLOCK,VALVE
2
BLOCK,VALVE
3
BLOCK,VALVE
3
BLOCK,VALVE
4
BLOCK,VALVE
4
BLOCK,VALVE
5
07000-13050
O-RING
6
07000-03038
O-RING
6
07000-03030
O-RING
7
07000-01007
O-RING
8
700-86-11112
BOLT
9
700-84-13220
BOLT
10
700-84-13480
BRACKET
11
01010-51020
BOLT
12
SPOOL,ARM
13
SPOOL,BOOM
14
SPOOL,BUCKET
15
700-84-11870
JOINT
16
07002-11223
O-RING
17
700-84-13923
PLATE
17
700-84-13921
PLATE
18
700-84-11240
O-RING
19
07000-01007
O-RING
20
700-84-13910
SEAL
21
700-84-13891
PLATE
22
01252-30612
BOLT
23
01252-30625
BOLT
24
700-84-13711
RETAINER
25
700-84-11650
SPRING
26
700-84-11641
COLLAR
27
01252-30830
BOLT
28
01643-30823
WASHER
29
700-84-11390
COVER
30
01252-30625
BOLT
31
01252-30630
BOLT
32
700-42-31460
VALVE
33
700-42-31470
SPRING
34
700-84-11320
PLUG
35
07002-13034
O-RING
36
700-22-11370
PLUG
37
07002-12434
O-RING
38
07040-11409
PLUG
39
07002-01423
O-RING
40
07043-70108
PLUG
41
706-86-51170
PLUG
42
700-84-13960
PLUG
43
700-22-11410
O-RING
44
700-80-64220
RING,BACK-UP
45
07002-03034
O-RING
46
700-81-78000
VALVE ASS'Y,SAFETY
46
700-84-13960
PLUG
47
700-22-11410
O-RING
48
700-80-64220
RING,BACK-UP
49
07002-03034
O-RING
|$64
709-70-91300
ORIFICE ASS'Y
50
ORIFICE
51
SENSOR
52
07002-02434
O-RING
53
07000-02014
O-RING
54
709-70-55103
RELIEF VALVE ASS'Y
54
709-70-55102
RELIEF VALVE ASS'Y
54
709-70-55101
RELIEF VALVE ASS'Y
54
709-70-55100
RELIEF VALVE ASS'Y
55
709-70-61201
VALVE ASS'Y,SUCTION AND SAFETY
55
709-70-61200
VALVE ASS'Y,SUCTION AND SAFETY
56
709-81-61002
VALVE ASS'Y,SUCTION AND SAFETY
56
700-81-61001
VALVE ASS'Y,SUCTION AND SAFETY
57
700-81-77000
SAFETY VALVE ASS'Y,SAFETY
Выбрано товаров: 77
