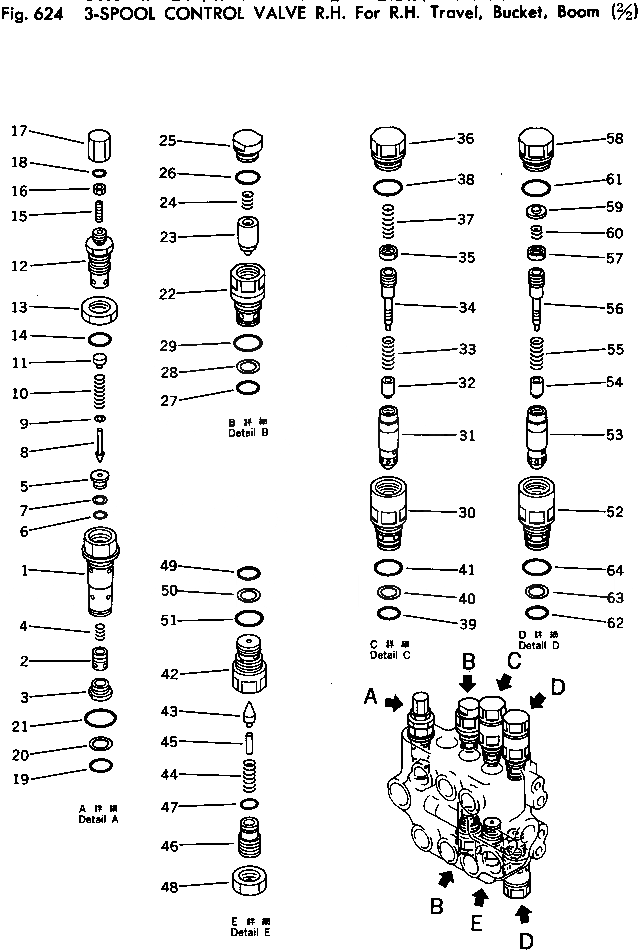

Запчасти Komatsu PC150-1 3-Х СЕКЦИОНН. КОНТРОЛЬН. КЛАПАН¤ ПРАВ.(/) (ДЛЯ ПРАВ. ХОД¤ КОВШ¤ СТРЕЛА) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

700-83-48001

VALVE ASS'Y

|1

700-84-59000

RELIEF VALVE ASS'Y

1

SLEEVE

2

VALVE

3

700-10-51230

PLUG

4

700-22-11540

SPRING

5

700-80-51170

SEAT

6

07000-22012

O-RING

7

07001-02012

RING,BACK-UP

8

700-80-61190

POPPET

9

700-80-51240

SPACER

10

700-90-51160

SPRING

11

700-90-51250

RETAINER

12

700-80-51260

HOLDER

13

07239-12410

NUT

14

07002-02434

O-RING

15

700-80-51270

SCREW,ADJUST

16

01580-10605

NUT

17

700-10-51220

COVER

18

07002-01423

O-RING

19

700-13-31161

O-RING

20

700-80-51190

RING,BACK-UP

21

07002-03334

O-RING

|22

700-80-96000

VALVE ASS'Y,SUCTION¤ R.H. TRAVEL

22

SLEEVE

23

VALVE

24

SPRING

25

PLUG

26

O-RING

27

700-80-61260

O-RING

28

700-80-61430

RING,BACK-UP

29

07002-03034

O-RING

|30

700-80-83001

VALVE ASS'Y,SUCTION AND SAFETY¤ BUCKET

30

SLEEVE

31

VALVE

32

POPPET

33

SPRING

34

PISTON

35

NUT

36

PLUG

37

SPRING

38

O-RING

39

700-80-61260

O-RING

40

700-80-61430

RING,BACK-UP

41

07002-03034

O-RING

|42

700-80-92000

VALVE ASS'Y,SAFETY¤ BUCKET

42

SLEEVE

43

POPPET

44

SPRING

45

STOPPER

46

PLUG

47

O-RING

48

NUT

49

700-80-61260

O-RING

50

700-80-61430

RING,BACK-UP

51

07002-03034

O-RING

|52

700-80-95000

VALVE ASS'Y,SUCTION AND SAFETY¤ BOOM

52

SLEEVE

53

VALVE

54

POPPET

55

SPRING

56

PISTON

57

NUT

58

PLUG

59

SPACER

60

SPRING

61

O-RING

62

700-80-61260

O-RING

63

700-80-61430

RING,BACK-UP

64

07002-03034

O-RING
