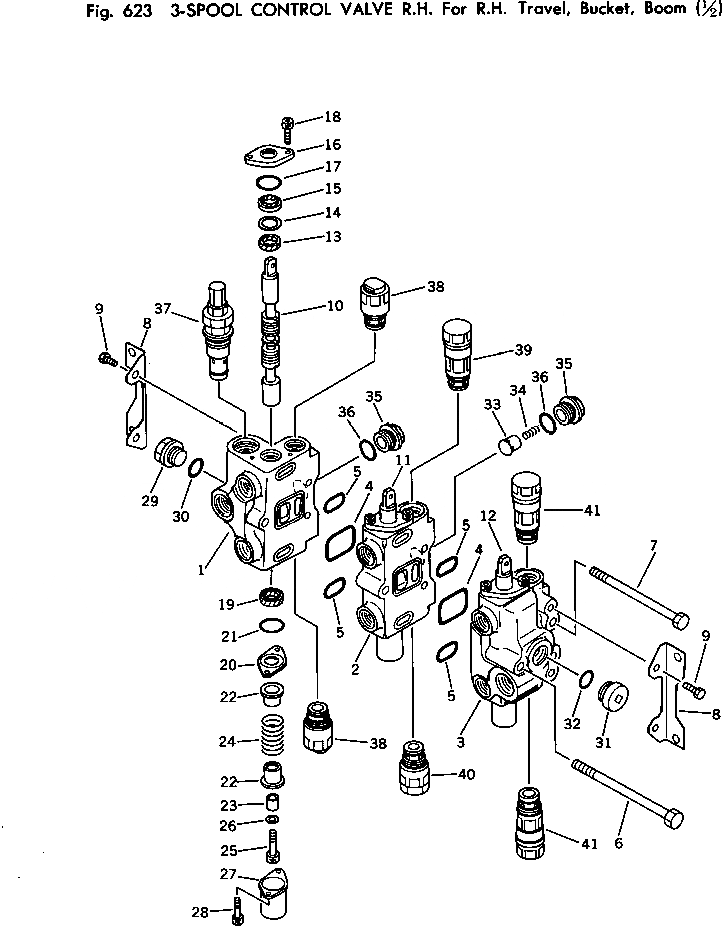

Запчасти Komatsu PC150-1 3-Х СЕКЦИОНН. КОНТРОЛЬН. КЛАПАН¤ ПРАВ.(/) (ДЛЯ ПРАВ. ХОД¤ КОВШ¤ СТРЕЛА) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

700-83-48001

VALVE ASS'Y

1

BODY

2

BLOCK

3

COVER

4

07000-13050

O-RING

5

07000-03030

O-RING

6

700-83-11222

BOLT

7

700-83-11212

BOLT

8

700-84-11330

BRACKET

9

01020-01020

BOLT

10

SPOOL,TRAVEL¤ R.H.

11

SPOOL,BUCKET

12

SPOOL,BOOM

13

700-84-11232

U-PACKING

14

700-84-11290

COLLAR

15

700-84-11820

SEAL,DUST

16

700-84-11310

PLATE

17

700-84-11240

O-RING

18

01252-30620

BOLT

19

700-84-11232

U-PACKING

20

700-84-11620

PLATE

21

700-84-11240

O-RING

22

700-84-11630

RETAINER

23

700-84-11640

COLLAR

24

700-84-11650

SPRING

25

01252-30830

BOLT

26

01643-30823

WASHER

27

700-84-11390

COVER

28

01252-30625

BOLT

29

700-22-11370

PLUG

30

07002-12434

O-RING

31

07040-13316

PLUG

32

07002-03334

O-RING

33

700-42-31460

VALVE

34

700-42-31470

SPRING

35

700-84-11320

PLUG

36

07002-13034

O-RING

37

700-84-59000

RELIEF VALVE ASS'Y

38

700-80-96000

VALVE ASS'Y,SUCTION¤ R.H. TRAVEL

39

700-80-83001

VALVE ASS'Y,SUCTION AND SAFETY¤ BUCKET

40

700-80-92000

VALVE ASS'Y,SAFETY¤ BUCKET

41

700-80-95000

VALVE ASS'Y,SUCTION AND SAFETY¤ BOOM
