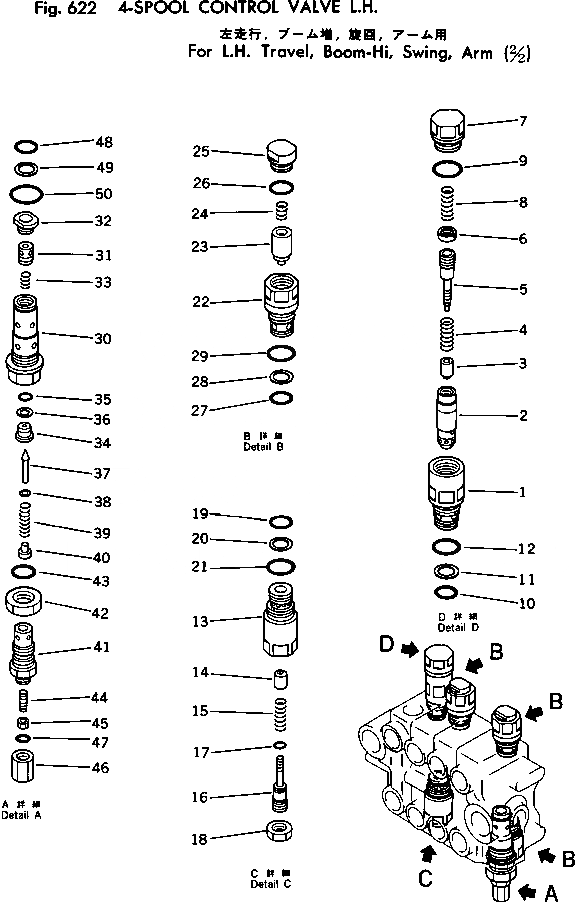

Запчасти Komatsu PC150-1 4-Х СЕКЦИОНН. УПРАВЛЯЮЩ. КЛАПАН¤ ЛЕВ.(/) (ДЛЯ ЛЕВ.ХОД¤СТРЕЛА-HI¤ПОВОРОТН.¤ РУКОЯТЬ) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

700-84-48001

VALVE ASS'Y

|1

700-80-83001

VALVE ASS'Y,SUCTION AND SAFETY¤ ARM

1

SLEEVE

2

VALVE

3

POPPET

4

SPRING

5

PISTON

6

NUT

7

PLUG

8

SPRING

9

O-RING

10

700-80-61260

O-RING

11

700-80-61430

RING,BACK-UP

12

07002-03034

O-RING

|13

700-80-91000

VALVE ASS'Y,SAFETY¤ ARM

13

SLEEVE

14

POPPET

15

SPRING

16

PISTON

17

O-RING

18

NUT

19

700-80-61260

O-RING

20

700-80-61430

RING,BACK-UP

21

07002-03034

O-RING

|22

700-80-96000

VALVE ASS'Y,SUCTION¤ L.H. TRAVEL¤ SWING

22

SLEEVE

23

VALVE

24

SPRING

25

PLUG

26

O-RING

27

700-80-61260

O-RING

28

700-80-61430

RING,BACK-UP

29

07002-03034

O-RING

|30

700-84-59000

RELIEF VALVE ASS'Y

30

SLEEVE

31

VALVE

32

700-10-51230

PLUG

33

700-22-11540

SPRING

34

700-80-51170

SEAT

35

07000-22012

O-RING

36

07001-02012

RING,BACK-UP

37

700-80-61190

POPPET

38

700-80-51240

SPACER

39

700-90-51160

SPRING

40

700-90-51250

RETAINER

41

700-80-51260

HOLDER

42

07239-12410

NUT

43

07002-02434

O-RING

44

700-80-51270

SCREW,ADJUST

45

01580-10605

NUT

46

700-10-51220

COVER

47

07002-01423

O-RING

48

700-13-31161

O-RING

49

700-80-51190

RING,BACK-UP

50

07002-03334

O-RING
