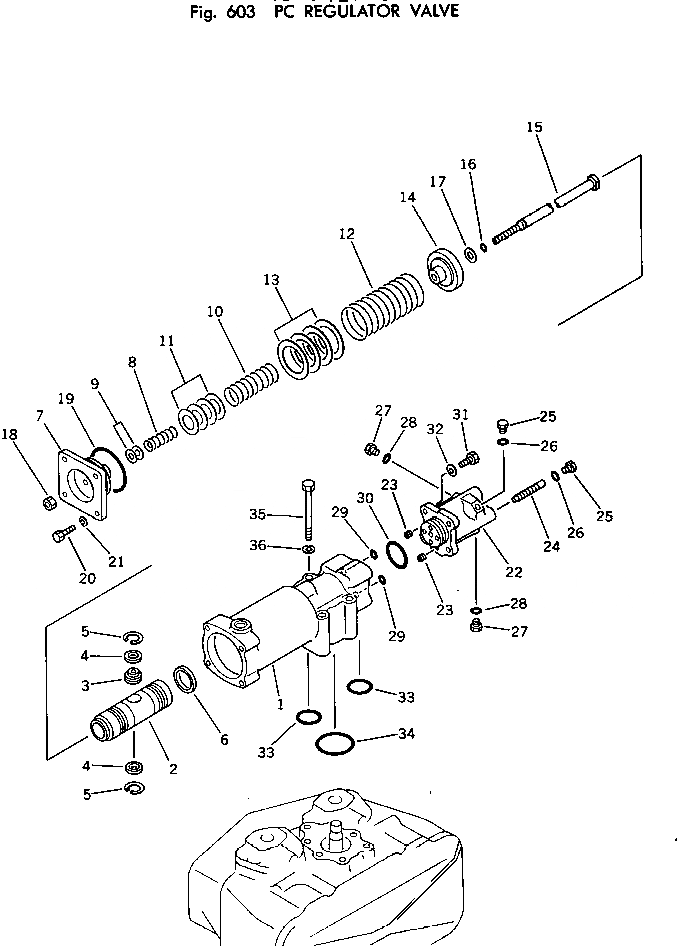

Запчасти Komatsu PC150-1 PC РЕГУЛИР. КЛАПАН УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

706-66-15200

PUMP ASS'Y

|1

706-66-51500

VALVE ASS'Y

1

706-66-51113

BODY,VALVE

2

SPOOL

3

BEARING

4

COLLAR

5

RING,SNAP

6

706-66-51980

COLLAR

7

706-66-51770

COVER

8

706-66-51970

SPRING

9

706-66-51290

SHIM¤ 1MM

10

706-66-51960

SPRING

11

706-66-51280

SHIM¤ 1MM

12

SPRING

13

SHIM

14

706-66-51930

RETAINER

15

706-66-51781

BOLT

16

07000-02010

O-RING

17

01643-31445

WASHER

18

01580-11210

NUT

19

07000-02090

O-RING

20

01010-51030

BOLT

21

01602-21030

WASHER,SPRING

22

COVER,PISTON

23

SCREW

24

706-66-51220

PISTON

25

07040-11007

PLUG

26

07002-11023

O-RING

27

07040-10807

PLUG

28

07002-10823

O-RING

29

07000-12011

O-RING

30

07000-03045

O-RING

31

01010-51030

BOLT

32

01602-21030

WASHER,SPRING

33

07000-11009

O-RING

34

07000-02080

O-RING

35

01011-51000

BOLT

36

01602-21030

WASHER,SPRING
