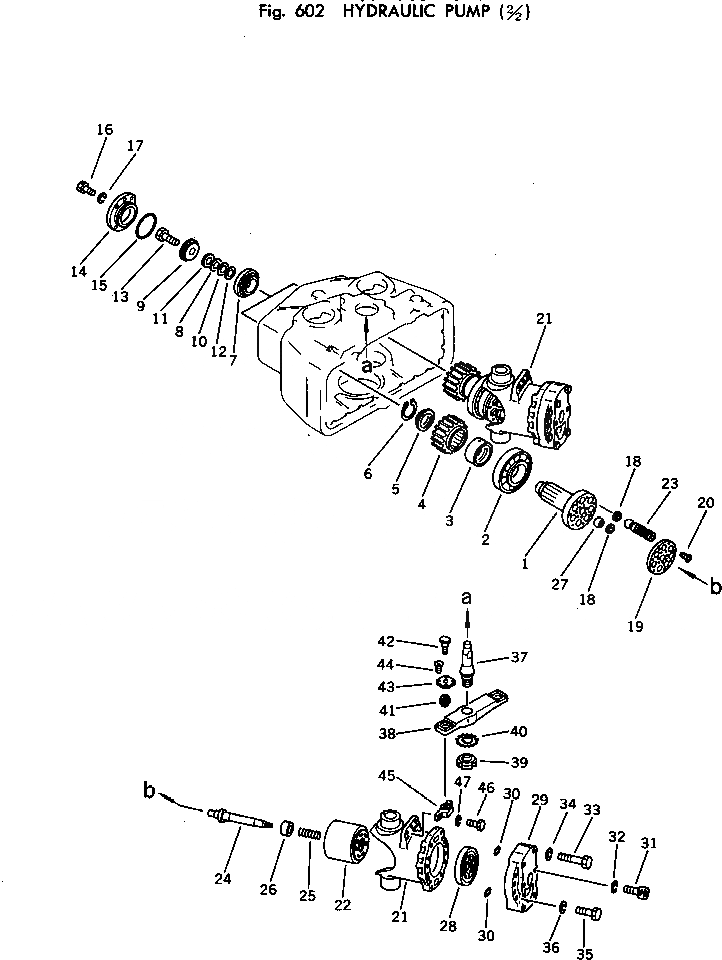

Запчасти Komatsu PC150-1 ГИДР. НАСОС. (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

706-66-15200

PUMP ASS'Y

|1

706-66-42001

PUMP SUB ASS'Y

1

SHAFT,DRIVE

2

BEARING

3

RING

4

GEAR

5

SPACER

6

RING

7

BEARING

8

SHIM

9

PLATE

10

SHIM

11

SPACER

12

SHIM

13

BOLT

14

706-66-40420

COVER

15

706-66-40430

O-RING

16

01010-50825

BOLT

17

01602-20825

WASHER,SPRING

18

HOLDER

19

RETAINER

20

SCREW

21

CASING,CYLINDER

22

BLOCK,CYLINDER

23

PISTON SUB ASS'Y

24

SHAFT,CENTER

25

SPRING

26

RING,CENTER

27

BALL,CENTER

28

PLATE,VALVE

29

COVER ASS'Y

30

O-RING

31

BOLT

32

WASHER,SPRING

33

BOLT

34

WASHER,SPRING

35

BOLT

36

WASHER,SPRING

37

ROD

38

LINK

39

NUT,LOCK

40

WASHER

41

BEARING

42

PIN

43

HOLDER,BEARING

44

SCREW

45

BRACKET

46

BOLT

47

WASHER,SPRING
