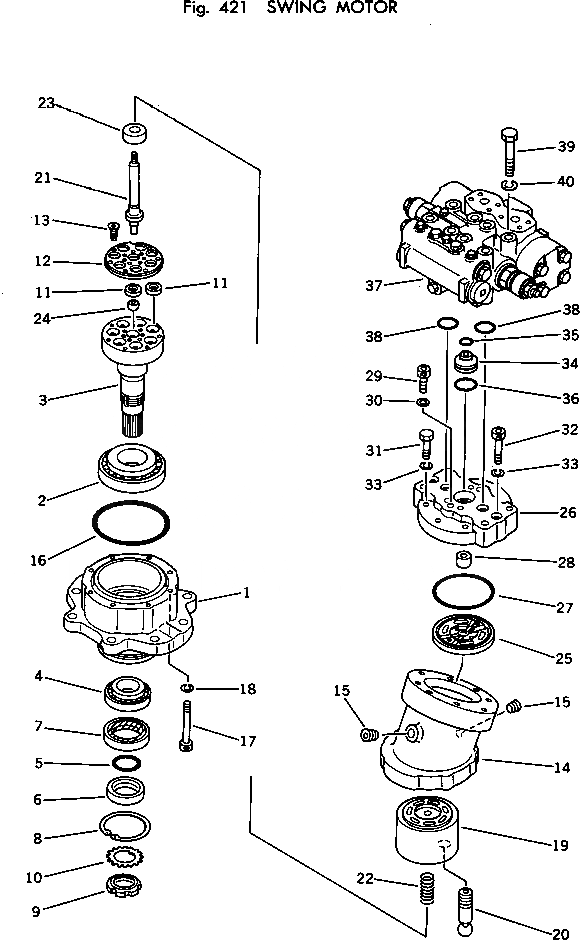

Запчасти Komatsu PC150-1 МОТОР ПОВОРОТА ПОВОРОТН. И СИСТЕМА УПРАВЛЕНИЯS

|1

706-75-06500

SWING MOTOR ASS'Y

|1

706-75-42003

MOTOR ASS'Y

1

COVER,FRONT

2

BEARING

3

SHAFT,DRIVE

4

BEARING

5

O-RING

6

RING

7

SEAL,OIL

8

RING,SNAP

9

NUT

10

WASHER,LOCK

11

HOLDER

12

RETAINER

13

SCREW

14

PLATE

15

706-73-40360

PLUG

16

O-RING

17

BOLT

18

WASHER,SPRING

19

BLOCK,CYLINDER

20

PISTON ASS'Y

21

SHAFT,CENTER

22

SPRING

23

RING,CENTER

24

BALL,CENTER

25

PLATE,VALVE

26

COVER,END

27

O-RING

28

BEARING

29

BOLT

30

GASKET,SEAL

31

BOLT

32

BOLT

33

WASHER,SPRING

34

706-75-73260

CAP

35

07000-02018

O-RING

36

07000-03035

O-RING

37

706-75-73800

BRAKE VALVE ASS'Y

38

07000-13032

O-RING

39

01011-51230

BOLT

40

01602-21236

WASHER,SPRING
