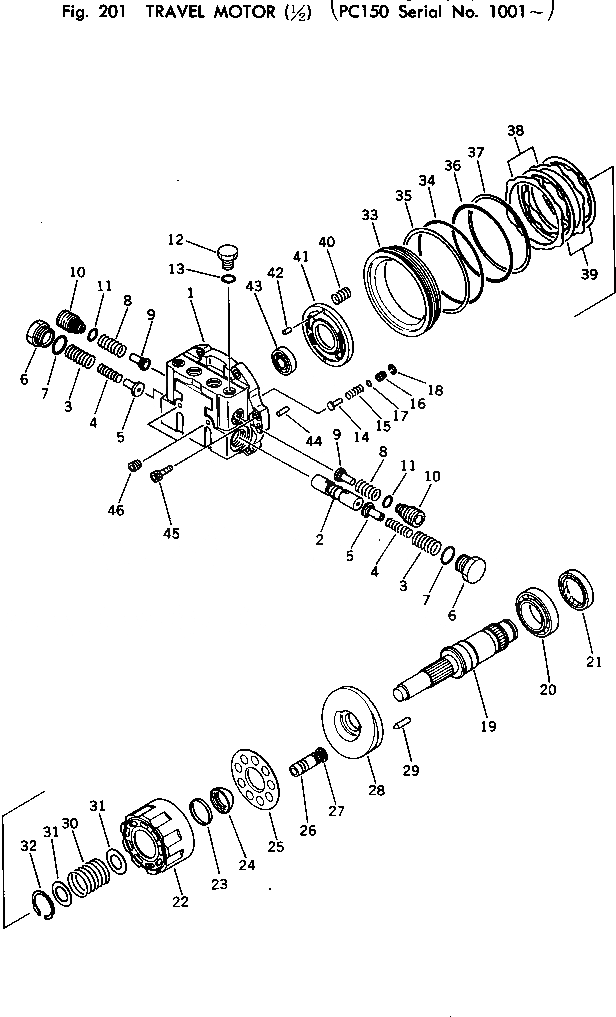

Запчасти Komatsu PC150-1 МОТОР ХОДА (/) ХОД И КОНЕЧНАЯ ПЕРЕДАЧА

|1

21K-60-00020

TRAVEL MOTOR ASS'Y

|1

FLANGE-SPOOL ASS'Y

1

FLANGE,REAR

2

SPOOL

3

SPRING

4

SPRING

5

STOPPER

6

PLUG

7

07000-13032

O-RING

8

SPRING

9

VALVE

10

PLUG

11

07000-12020

O-RING

12

PLUG

13

07002-02034

O-RING

14

VALVE

15

SPRING

16

SEAT,VALVE

17

07000-11009

O-RING

18

RING

19

SHAFT

20

BEARING,ROLLER

21

SEAL,OIL

22

BLOCK,CYLINDER

23

WASHER KIT

24

BALL,THRUST

25

PLATE,RETAINER

|26

PISTON SHOE ASS'Y

26

PISTON

27

SHOE

28

PLATE,SWASH

29

PIN

30

SPRING

31

WASHER

32

RING,SNAP

33

PISTON

34

07000-15170

O-RING

35

RING,BACK-UP

36

07000-15145

O-RING

37

RING,BACK-UP

38

PLATE

39

DISC

40

SPRING

41

PLATE,TIMING

42

PIN,DOWEL

43

06000-06005

BEARING,BALL

44

PIN,DOWEL

45

01252-31235

BOLT

46

PLUG
