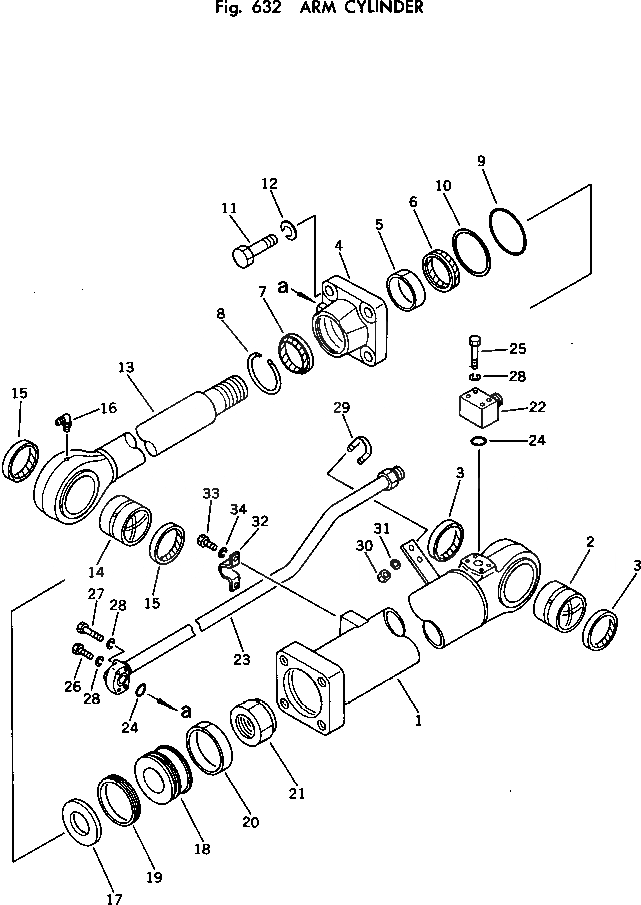

Запчасти Komatsu PC150-1 ЦИЛИНДР РУКОЯТИ УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ
№
Артикул
Название
Примечание
Количество
|$0
21K-63-66301
ARM CYLINDER ASS'Y,\
1
21K-63-66340
CYLINDER
2
707-76-80030
BUSHING
3
07145-00080
SEAL,DUST (KIT)
4
707-27-12020
HEAD,CYLINDER
5
07177-08030
BUSHING
6
707-51-80211
PACKING,ROD (KIT)
7
195-63-92190
SEAL,DUST (KIT)
8
07179-00103
RING,SNAP
9
07000-12115
O-RING (KIT)
10
07146-02116
RING,BACK-UP (KIT)
11
01010-82475
BOLT
12
01602-22472
WASHER,SPRING
13
21K-63-66320
ROD,PISTON \
14
707-76-80030
BUSHING
15
07145-00080
SEAL,DUST (KIT)
16
07020-00900
FITTING,GREASE
17
707-41-10130
WASHER
18
707-36-12381
PISTON
19
707-44-12080
RING,PISTON (KIT)
20
07155-01230
RING,WEAR (KIT)
21
07165-15860
NUT,\
22
21K-62-15173
ELBOW,\
23
21K-63-66370
TUBE
24
07000-13030
O-RING (KIT)
25
01010-50870
BOLT
26
01010-50840
BOLT
27
01010-50855
BOLT
28
01602-20825
WASHER,SPRING
29
07283-22738
CLIP
30
01599-01011
NUT
31
01643-31032
WASHER
32
07282-02793
CLAMP
33
01010-51025
BOLT
34
01602-21030
WASHER,SPRING
|$0
21K-63-66301
ARM CYLINDER ASS'Y,\
1
21K-63-66340
CYLINDER
2
707-76-80030
BUSHING
3
07145-00080
SEAL,DUST (KIT)
4
707-27-12020
HEAD,CYLINDER
5
07177-08030
BUSHING
6
707-51-80211
PACKING,ROD (KIT)
7
195-63-92190
SEAL,DUST (KIT)
8
07179-00103
RING,SNAP
9
07000-12115
O-RING (KIT)
10
07146-02116
RING,BACK-UP (KIT)
11
01010-82475
BOLT
12
01602-22472
WASHER,SPRING
13
21K-63-66320
ROD,PISTON \
14
707-76-80030
BUSHING
15
07145-00080
SEAL,DUST (KIT)
16
07020-00900
FITTING,GREASE
17
707-41-10130
WASHER
18
707-36-12381
PISTON
19
707-44-12080
RING,PISTON (KIT)
20
07155-01230
RING,WEAR (KIT)
21
07165-15860
NUT,\
22
21K-62-15173
ELBOW,\
23
21K-63-66370
TUBE
24
07000-13030
O-RING (KIT)
25
01010-50870
BOLT
26
01010-50840
BOLT
27
01010-50855
BOLT
28
01602-20825
WASHER,SPRING
29
07283-22738
CLIP
30
01599-01011
NUT
31
01643-31032
WASHER
32
07282-02793
CLAMP
33
01010-51025
BOLT
34
01602-21030
WASHER,SPRING
