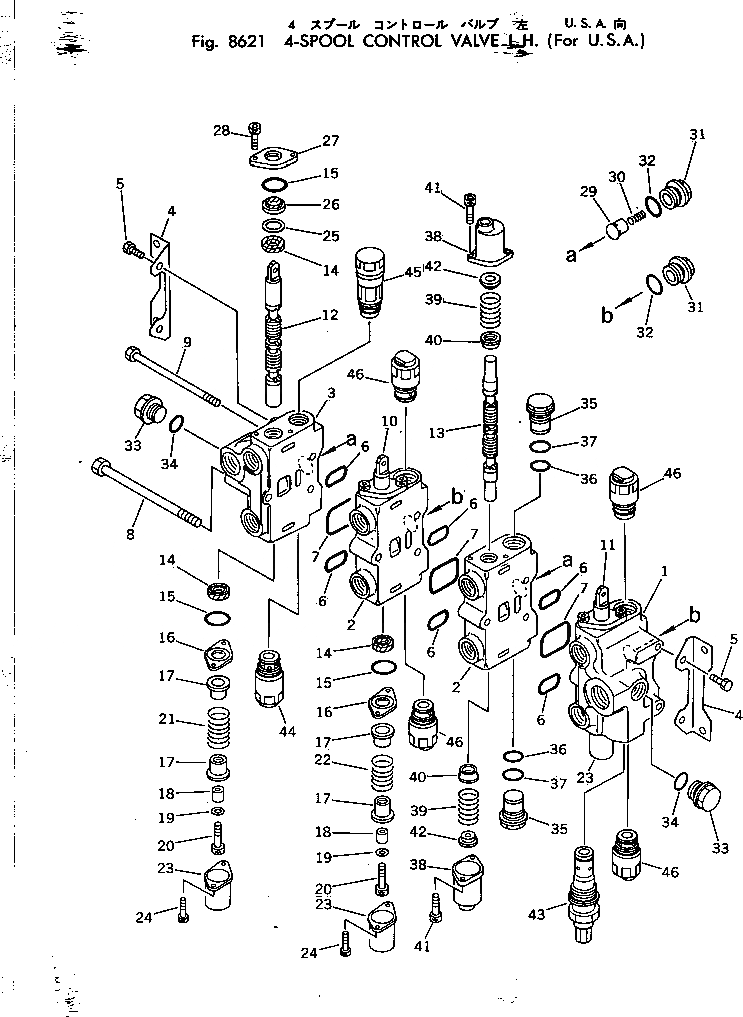

Запчасти Komatsu PC150-1 4-Х СЕКЦИОНН. УПРАВЛЯЮЩ. КЛАПАН ЛЕВ. (ДЛЯ U.S.A)(№-) ОПЦИОННЫЕ КОМПОНЕНТЫ (СПЕЦ. APPLICATION ЧАСТИ)

|$0

709-84-21100

VALVE ASS'Y

1

BODY,VALVE

2

BLOCK,VALVE

3

COVER,VALVE

4

700-84-11330

BRACKET

5

01010-51020

BOLT

6

07000-03030

O-RING

7

07000-13050

O-RING

8

700-84-11182

BOLT

9

700-84-11172

BOLT

10

SPOOL

11

SPOOL

12

SPOOL

13

SPOOL

14

700-84-11232

U-PACKING

15

700-84-11240

O-RING

16

700-84-11620

PLATE

17

700-84-11630

RETAINER

18

700-84-11640

COLLAR

19

01643-30823

WASHER

20

01252-30830

BOLT

21

700-84-11650

SPRING

22

700-84-11850

SPRING

23

700-84-11390

COVER

24

01252-30625

BOLT

25

700-84-11290

COLLAR

26

700-84-11820

SEAL,DUST

27

700-84-11310

PLATE

28

01252-30620

BOLT

29

700-42-31460

VALVE

30

700-42-31470

SPRING

31

700-84-11320

PLUG

32

07002-13034

O-RING

33

700-22-11370

PLUG

34

07002-12434

O-RING

35

700-84-11340

PLUG

36

700-80-61260

O-RING

37

07002-03034

O-RING

38

700-84-12510

CASE

39

700-84-12430

SPRING

40

700-84-12420

SPACER

41

01252-30616

BOLT

42

700-84-12540

SPACER

43

700-84-59000

RELIEF VALVE ASS'Y,(SEE FIG.622)

44

700-84-91000

RELIEF VALVE ASS'Y,(SEE FIG.622)

45

700-80-83001

VALVE ASS'Y,(SEE FIG.622)

46

700-80-96000

VALVE ASS'Y,SUCTION (SEE FIG.622)
