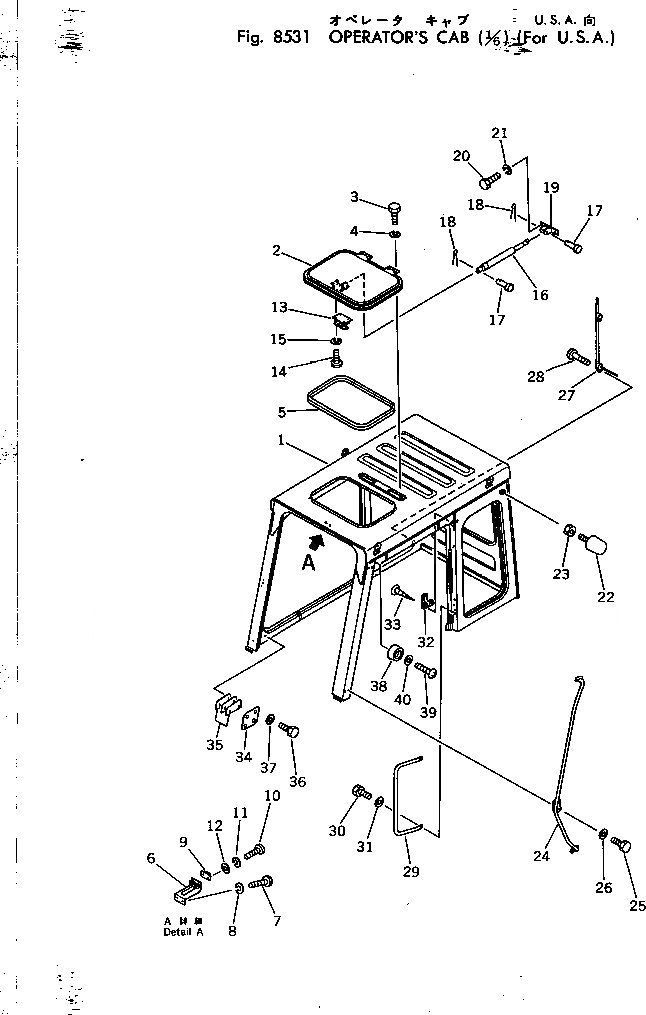

Запчасти Komatsu PC150-1 КАБИНА (/) (ДЛЯ U.S.A)(№-) ОПЦИОННЫЕ КОМПОНЕНТЫ (СПЕЦ. APPLICATION ЧАСТИ)

|$0

21K-54-00180

OPERATOR'S CAB ASS'Y

|$2

21K-54-00170

CAB ASS'Y

1

CABIN

2

21K-54-11710

COVER

3

01010-50612

BOLT

4

01602-20619

WASHER,SPRING

5

205-54-66380

SEAL

6

21K-54-11211

BRACKET

7

01220-30614

SCREW

8

01601-20619

WASHER,SPRING

9

205-54-66270

HOLDER

10

01220-30620

SCREW

11

01602-20619

WASHER,SPRING

12

01641-00608

WASHER

13

205-54-66190

LOCK ASS'Y

14

01220-30614

SCREW

15

01602-20619

WASHER,SPRING

16

205-54-63650

GAS SPRING ASS'Y

17

04205-00825

PIN

18

04050-02012

PIN,COTTER

19

205-54-63640

BRACKET

20

01010-50820

BOLT

21

01602-20825

WASHER,SPRING

22

21K-54-11310

STOPPER

23

01580-11210

NUT

24

205-54-66630

HANDLE

25

01010-51030

BOLT

26

01643-31032

WASHER

27

205-06-62350

ANTENNA ASS'Y

28

01225-30425

SCREW

29

205-54-66480

HANDLE

30

01010-51030

BOLT

31

01643-31032

WASHER

32

205-54-51250

HANGER

33

01381-00420

SCREW

34

205-54-66510

PLATE

35

205-54-66640

SHIM, 1.0MM

36

01010-51030

BOLT

37

01643-31032

WASHER

38

205-54-51960

CUSHION

39

01370-00412

SCREW

40

01641-00405

WASHER
