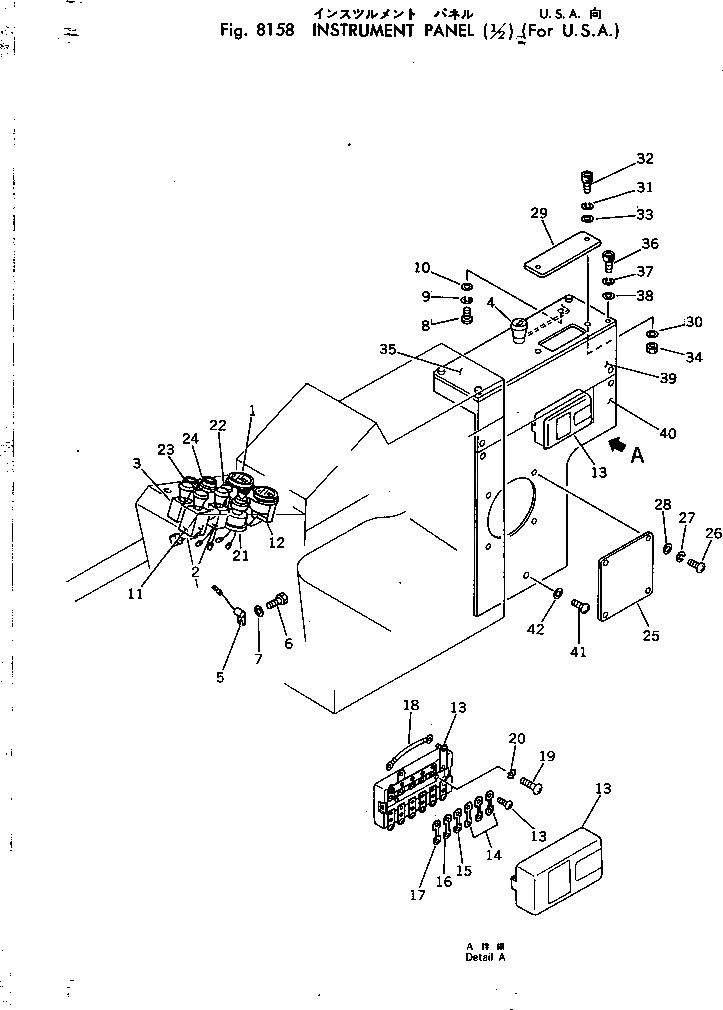

Запчасти Komatsu PC150-1 ПАНЕЛЬ ПРИБОРОВ (/) (ДЛЯ U.S.A)(№-) ОПЦИОННЫЕ КОМПОНЕНТЫ (СПЕЦ. APPLICATION ЧАСТИ)

1

08687-22402

METER,SERVICE

2

08183-00000

SWITCH,WIPER

3

09481-02400

SWITCH,HEATER

4

195-822-6150

LIGHTER

5

205-06-51290

CONDENSER

6

01010-50612

BOLT

7

01643-30623

WASHER

8

01220-40412

SCREW

9

01601-20410

WASHER

10

01643-20405

WASHER

11

08061-40010

SWITCH,LAMP

12

208-06-11280

GAUGE,WATER TEMPERATURE

13

175-06-35430

BOX,FUSE

14

175-06-35420

FUSE, 10A

15

175-06-35410

FUSE, 20A

16

175-06-35390

FUSE, 30A

17

175-06-35380

FUSE, 40A

18

178-06-12290

WIRE

19

01220-40616

SCREW

20

01611-06060

WASHER

21

201-06-21510

SWITCH,STARTER

22

6008-15-2371

SIGNAL,HEATER

23

125-06-22220

LAMP,SWING LOCK

24

125-06-22210

LAMP,CHARGE

25

203-06-31130

PLATE

26

01220-40420

SCREW

27

01601-20410

WASHER,SPRING

28

01641-20405

WASHER

29

203-06-31160

PLATE

30

205-06-62190

WASHER

31

205-06-62180

WASHER,SPRING

32

205-06-62170

BOLT

33

145-279-6630

WASHER

34

01580-10403

NUT

35

21K-06-13570

PANEL

36

205-06-62170

BOLT

37

205-06-62180

WASHER,SPRING

38

205-06-62190

WASHER

39

21K-06-13560

COVER

40

21K-06-13550

COVER

41

01220-40816

SCREW

42

01643-30823

WASHER
