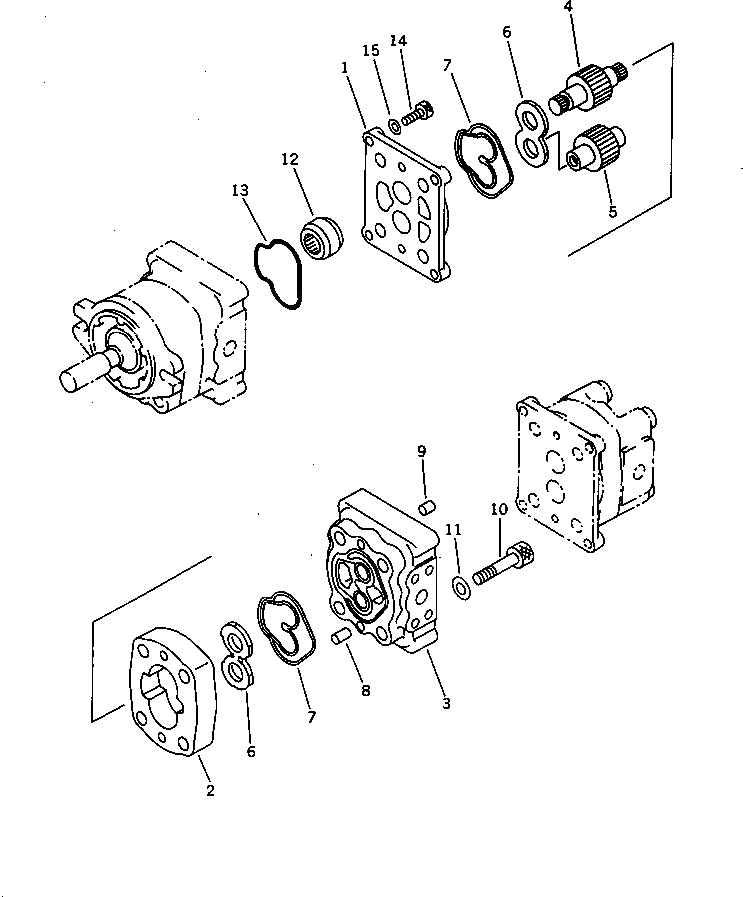

Запчасти Komatsu PC15-3 ГИДР. НАСОС. (/) (КРОМЕ ЯПОН.)(№-) ГИДРАВЛИКА

|$0

705-41-08070

PUMP ASS'Y

|$1

705-41-04002

PUMP ASS'Y (SBR10)

1

705-40-80511

BRACKET

1

705-40-80620

BUSHING,PLANE (DRIVE SIDE)

1

705-40-80610

BUSHING,PLANE (DRIVEN SIDE)

2

705-40-22011

CASE,GEAR

3

705-40-80311

CARRIER ASS'Y

3

705-40-80610

BUSHING,PLANE (DRIVE SIDE)

3

705-40-80620

BUSHING,PLANE (DRIVEN SIDE)

4

705-40-22462

GEAR,DRIVE

5

705-40-22511

GEAR,DRIVEN

6

705-40-80720

PLATE,SIDE

7

705-40-80760

SEAL,RING

8

04020-00820

PIN,DOWEL

9

705-67-01230

PIN,DOWEL

10

01252-31270

BOLT

11

01643-51232

WASHER

12

705-67-01330

COUPLING ASS'Y

13

705-40-80660

SEAL,RING

14

705-41-80750

BOLT

15

01643-50823

WASHER
