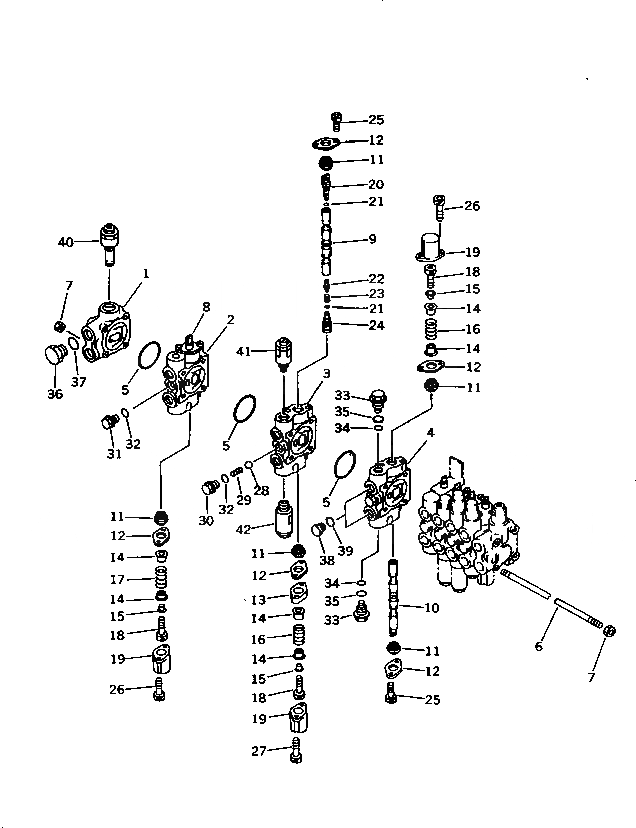

Запчасти Komatsu PC15-3 ГИДРАВЛ УПРАВЛЯЮЩ. КЛАПАН (7-СЕКЦИОНН.)(/)(№-) ГИДРАВЛИКА

|$0

709-37-12201

VALVE ASS'Y

1

BLOCK

2

BLOCK

3

BLOCK

4

BLOCK

5

07000-12055

O-RING

6

709-37-11510

STUD

7

01580-10806

NUT

8

SPOOL,L.H. TRAVEL

9

SPOOL,ARM

10

SPOOL,SERVICE

11

709-32-11530

SEAL,DUST

12

709-32-11540

PLATE

13

709-32-13560

SPACER

14

709-32-11550

RETAINER

15

709-32-11560

COLLAR

16

709-32-11580

SPRING

17

709-32-11590

SPRING

18

01252-30620

BOLT

19

709-32-11570

COVER

20

709-32-13580

JOINT

21

07000-11003

O-RING

22

709-32-13531

POPPET

23

709-32-13551

SPRING

24

709-32-13570

JOINT

25

01252-30610

BOLT

26

01252-30616

BOLT

27

01252-30630

BOLT

28

04260-01270

BALL

29

709-32-11820

SPRING

30

709-32-11810

PLUG

31

709-32-11930

PLUG

32

07002-11823

O-RING

33

709-32-11830

PLUG

34

709-32-11840

O-RING

35

07002-02034

O-RING

36

07040-12012

PLUG

37

07002-02034

O-RING

38

07040-11812

PLUG

39

07002-11823

O-RING

40

700-27-59000

VALVE ASS'Y,MAIN RELIEF

41

709-30-66200

VALVE ASS'Y,SAFETY

42

709-30-63702

VALVE ASS'Y,SUCTION AND SAFETY
