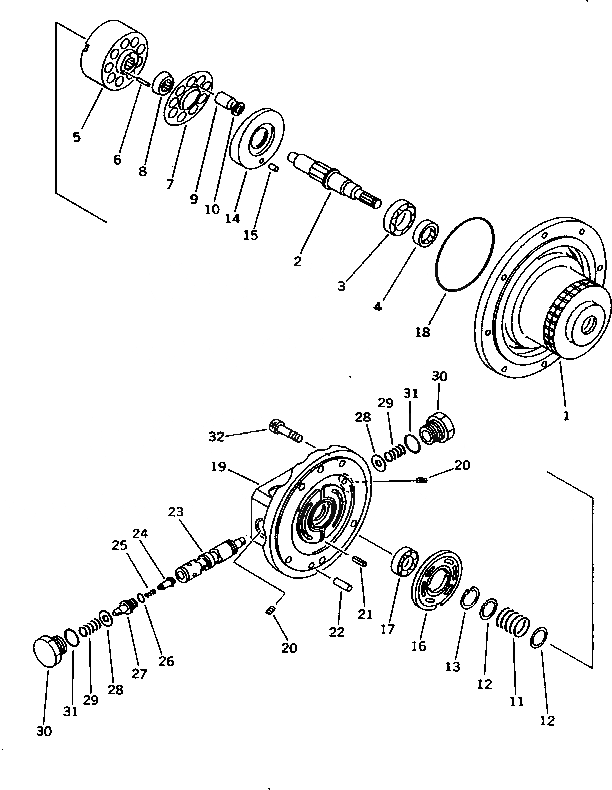

Запчасти Komatsu PC15-3 МОТОР ХОДА (/)(№-) НИЖНЯЯ ГИДРОЛИНИЯ И ЛИНИЯ ХОДА

|$0

20N-60-42200

MOTOR ASS'Y

1

FUFZS2180021C

BODY

2

FUFZS2180031

SHAFT

3

06000-06204

BEARING

4

20P-60-16920

SEAL,OIL (K2)

|$5

FUPDP101000

BARREL ASS'Y,CYLINDER

5

FUFZS2180042

BARREL,CYLINDER

6

20N-60-31520

PIN

7

FUFZS2098081

HOLDER,SHOE

8

FUFZS2610091

BARREL,HOLDER

9

FUFZS2720063

PISTON

10

FUPS1710200

SHOE

11

20N-60-31530

SPRING

12

20N-60-31510

RETAINER

13

04065-02812

RING,SNAP

|$15

FUPDS101022

SWASH PLATE ASS'Y

14

FUPZS218022

PLATE,SWASH

15

04022-00816

PIN

16

FUFZS2098051

PLATE,VALVE

17

06000-06201

BEARING

18

07000-12095

O-RING (K2)

19

FUFZS2098012

BODY

20

FUFZS5606202

CHOKE

21

04025-00512

PIN,SPRING

22

20W-60-12780

PIN

23

FUFZS20981110A

SPOOL

24

FUFZS2098121

CHECK

25

FUFZS2098161

SPRING

26

07000-12010

O-RING (K2)

27

FUFZS2098131

GUIDE,SPRING

28

20N-60-42530

RING

29

20N-60-42510

SPRING

30

20N-60-42520

PLUG

31

07000-12018

O-RING (K2)

32

01252-40820

BOLT

|$36

FUGHS2N1019

SEAL ASS'Y

K1

FUGHS2N11019

SEAL KIT

K1

20N-60-31680

O-RING

K1

20N-60-42240

O-RING

K2

FUGHS2N21015

SEAL KIT

K2

20P-60-16920

SEAL,OIL

K2

07000-12095

O-RING

K2

07000-12010

O-RING

K2

07000-12018

O-RING
