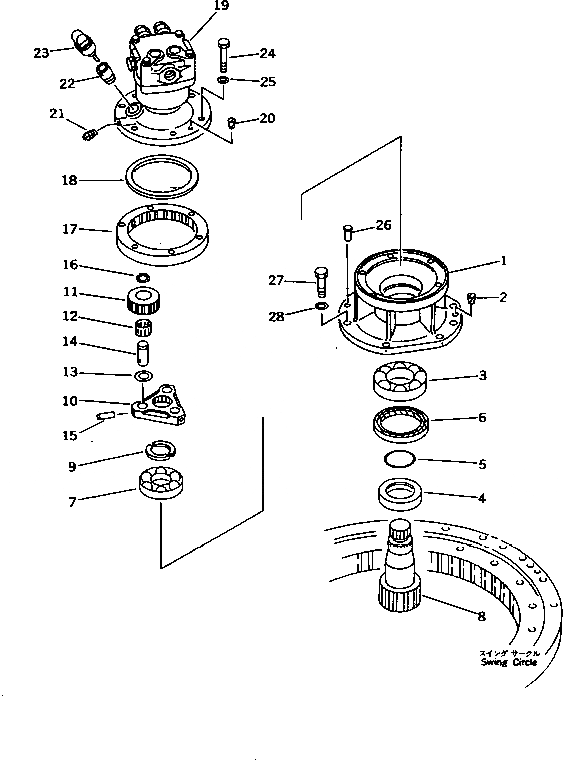

Запчасти Komatsu PC15-3 МЕХАНИЗМ ПОВОРОТА ПОВОРОТН. КРУГ И КОМПОНЕНТЫ

|$0

20N-26-71000

SWING MACHINERY A.

|$1

20N-26-71500

SWING MACHINERY A.

1

20S-26-71421

CASE

2

07049-01215

PLUG

3

20S-26-71451

BEARING

4

20S-26-71330

COLLAR

5

07000-02055

O-RING

6

07012-00075

SEAL,OIL

7

20T-26-71221

BEARING

8

20S-26-71311

SHAFT

9

20T-26-71311

SPACER

10

20S-26-71411

CARRIER

11

20S-26-71440

GEAR

12

23S-15-49420

BEARING

13

20S-26-71160

WASHER,THRUST

14

20S-26-71211

SHAFT

15

20S-26-71250

PIN

16

20S-26-71190

RING,SNAP

17

20S-26-71430

GEAR,RING

18

20T-26-71111

SPACER

19

708-7S-00032

SWING MOTOR ASS'Y

20

07049-01012

PLUG

21

07042-20108

PLUG

22

20T-26-71340

FILLER

23

20T-26-71330

CAP

24

01010-51050

BOLT

25

01643-31032

WASHER

26

20P-26-71110

PIN,DOWEL

27

01010-51235

BOLT

28

01643-31232

WASHER
