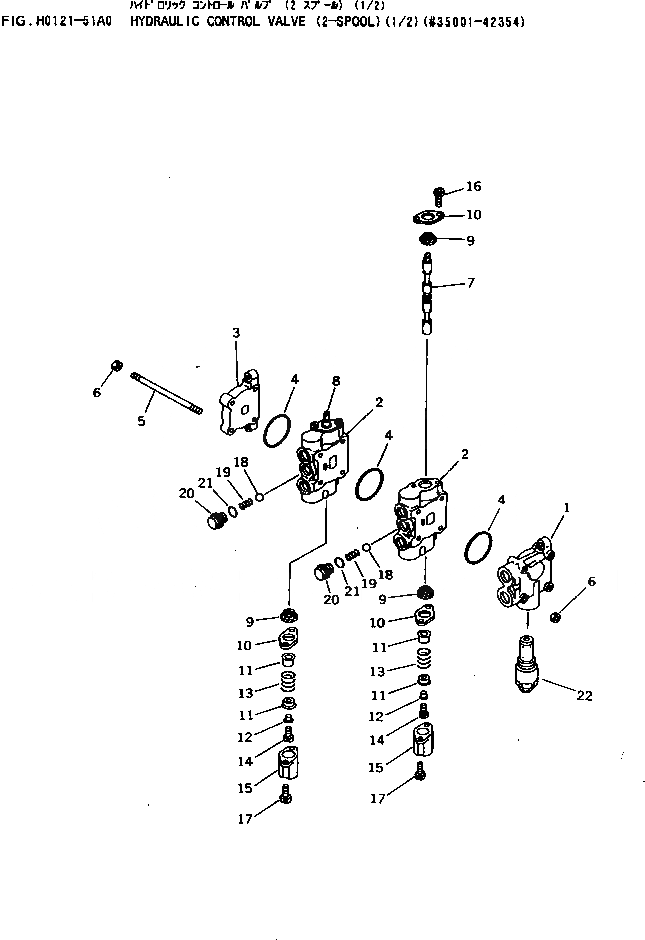

Запчасти Komatsu PC15-3 ГИДРАВЛ КОНТРОЛЬНЫЙ КЛАПАН (2-Х СЕЦИОНН.)(/)(№-) ГИДРАВЛИКА

|1

709-32-13301

VALVE ASS'Y

1

BLOCK

2

BLOCK

3

COVER

4

07000-12055

O-RING

5

709-32-11510

STUD

6

01580-10806

NUT

7

SPOOL,BLADE

8

SPOOL,SWING

9

709-32-11530

SEAL,DUST

10

709-32-11540

PLATE

11

709-32-11550

RETAINER

12

709-32-11560

COLLAR

13

709-32-11580

SPRING

14

01252-30620

BOLT

15

709-32-11570

COVER

16

01252-30610

BOLT

17

01252-30616

BOLT

18

04260-01270

BALL

19

709-32-11820

SPRING

20

709-32-11810

PLUG

21

07002-11823

O-RING

22

700-28-56000

RELIEF VALVE ASS'Y,MAIN RELIEF
