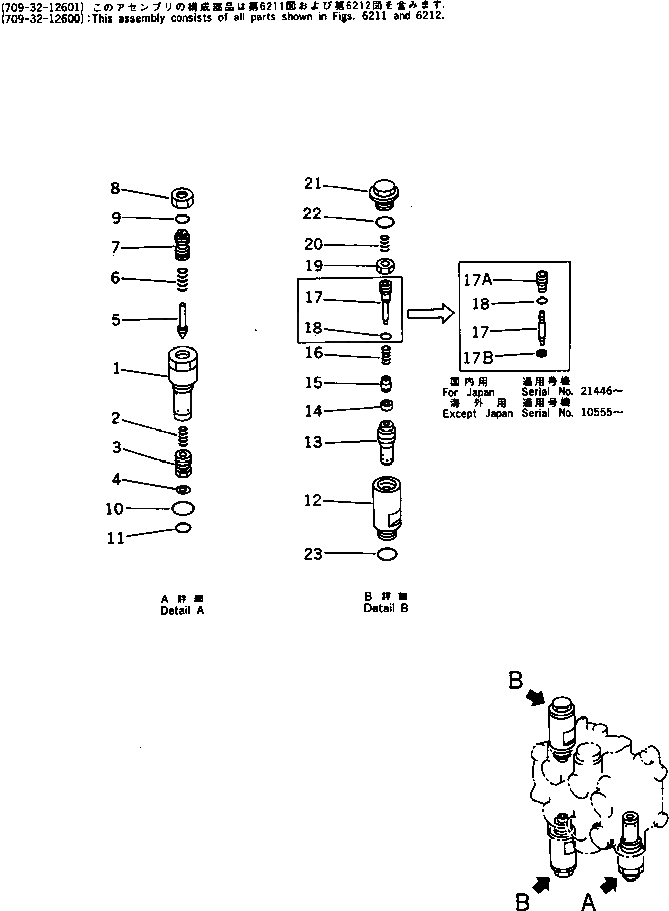

Запчасти Komatsu PC15-2A 2-Х СЕКЦИОНН. УПРАВЛЯЮЩ. КЛАПАН (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

709-32-12601

VALVE ASS'Y

|$1

709-32-12600

VALVE ASS'Y

|$2

700-22-51001

VALVE ASS'Y,MAIN RELIEF

1

SLEEVE

2

700-20-51430

SPRING

3

VALVE

4

700-20-51240

RING

5

700-80-61190

POPPET

6

700-20-51350

SPRING

7

700-20-51340

SCREW

8

01583-11408

NUT

9

07000-02011

O-RING

10

700-22-11410

O-RING

11

07002-02434

O-RING

|$14

709-30-62601

VALVE ASS'Y,SUCTION AND SAFETY

|$15

709-30-62600

VALVE ASS'Y,SUCTION AND SAFETY

12

709-30-62110

SLEEVE

13

VALVE

13

VALVE

14

SEAL

15

POPPET

16

SPRING

17

PISTON

17A

SCREW

17B

SEAL

17

PISTON

18

O-RING

19

NUT

20

700-20-62170

SPRING

21

709-30-62150

PLUG

22

07002-12034

O-RING

23

07002-02034

O-RING
