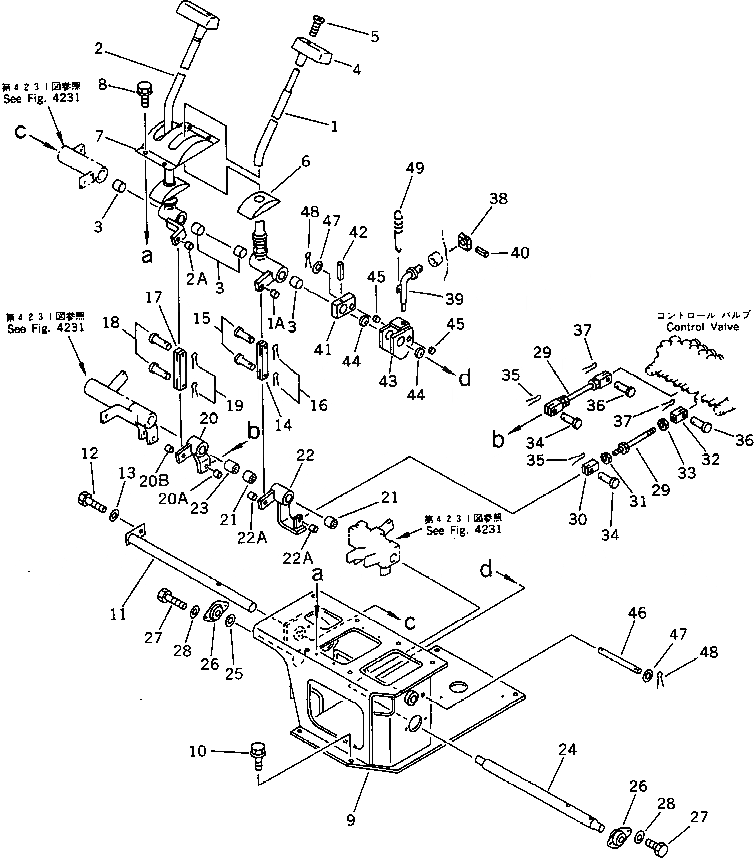

Запчасти Komatsu PC15-2A РЫЧАГ УПРАВЛ-Я ХОДОМ (ДЛЯ ЯПОН.) (ДЛЯ АЗИИ)(№7-) СИСТЕМА УПРАВЛЕНИЯ И ОСНОВНАЯ РАМА

|$0

20N-43-40130

LEVER ASS'Y,L.H.

1

LEVER

1A

06600-01008

BUSHING

|$3

20N-43-40120

LEVER ASS'Y,R.H.

2

LEVER

2A

06600-01008

BUSHING

3

195-61-34140

BEARING

4

203-43-41340

KNOB

5

01225-40625

SCREW

6

20S-43-11230

COVER

7

21U-54-11470

COVER

8

01435-00816

BOLT

9

20N-43-42111

BRACKET

10

01435-01020

BOLT

11

20N-43-42311

SHAFT

12

01010-50820

BOLT

13

01643-30823

WASHER

14

20N-43-42591

YOKE

15

04205-10822

PIN

16

04050-12015

PIN,COTTER

17

20N-43-42550

YOKE

18

04205-11026

PIN

19

04050-13020

PIN,COTTER

|$23

20N-43-40160

LEVER ASS'Y

20

LEVER

20A

06600-00805

BUSHING

20B

06600-01008

BUSHING

21

195-61-34140

BEARING

|$28

20N-43-40170

LEVER ASS'Y

22

LEVER

22A

06600-00805

BUSHING

23

195-61-34140

BEARING

24

20N-43-42411

SHAFT

25

01640-22032

WASHER

26

20N-43-41290

BEARING

27

01010-50820

BOLT

28

01643-50823

WASHER

29

04248-30815

ROD

30

04211-20844

YOKE

31

01580-10806

NUT

32

20N-43-41260

YOKE,L.H. THREAD

33

01508-20805

NUT,L.H. THREAD

34

04205-10822

PIN

35

04050-12015

PIN,COTTER

36

04205-10822

PIN

37

04050-12015

PIN,COTTER

38

20S-43-31220

BOSS,LOCK

39

20N-43-42230

LEVER

40

04025-00520

PIN,SPRING

41

20N-43-42350

BLOCK

42

04025-00640

PIN,SPRING

43

20N-43-42361

BRACKET

44

20N-43-42370

BUSHING

45

20S-43-31560

BUSHING

46

20N-43-42380

PIN

47

01641-21016

WASHER

48

04050-13020

PIN,COTTER

49

10E-43-12650

SPRING
