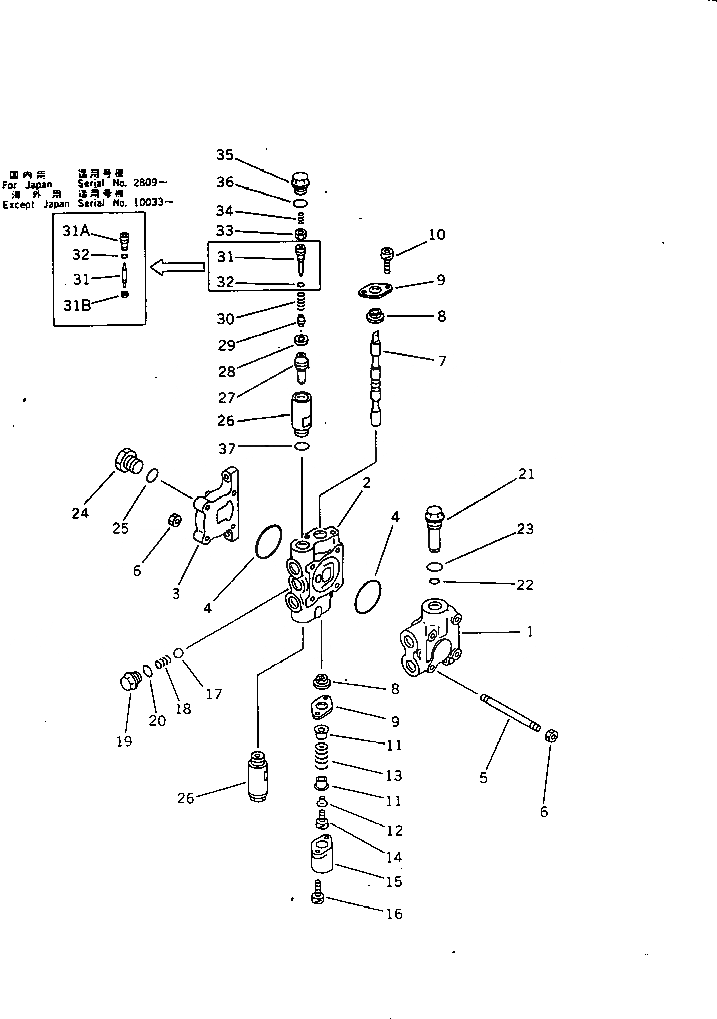

Запчасти Komatsu PC15-2 -СЕКЦ. УПРАВЛЯЮЩ. КЛАПАН (ДЛЯ НАВЕСН. ОБОРУД.) (ДЛЯ АЗИИ) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

709-31-11801

VALVE ASS'Y

|1

709-31-11800

VALVE ASS'Y

1

BLOCK

2

BLOCK

3

COVER

4

07000-12055

O-RING

5

709-31-11510

STUD

6

01580-10806

NUT

7

SPOOL

8

709-32-11530

SEAL

9

709-32-11540

PLATE

10

01252-30610

BOLT

11

709-32-11550

RETAINER

12

709-32-11560

COLLAR

13

709-32-11590

SPRING

14

01252-30620

BOLT

15

709-32-11570

COVER

16

01252-30616

BOLT

17

04260-01270

BALL

18

709-32-11820

SPRING

19

709-32-11810

PLUG

20

07002-11823

O-RING

21

700-26-11150

PLUG

22

07000-12014

O-RING

23

07002-02434

O-RING

24

07040-12012

PLUG

25

07002-02034

O-RING

|26

709-30-64500

VALVE ASS'Y,SUCTION AND SAFETY

|26

709-30-62400

VALVE ASS'Y,SUCTION AND SAFETY

26

709-30-62110

SLEEVE

27

VALVE

|27

VALVE

28

SEAL

29

POPPET

|29

POPPET

30

SPRING

31

PISTON

|31

PISTON

31A

SCREW

31B

SEAL

32

O-RING

33

NUT

34

700-20-62170

SPRING

35

709-30-62150

PLUG

36

07002-12034

O-RING

37

07002-02034

O-RING
