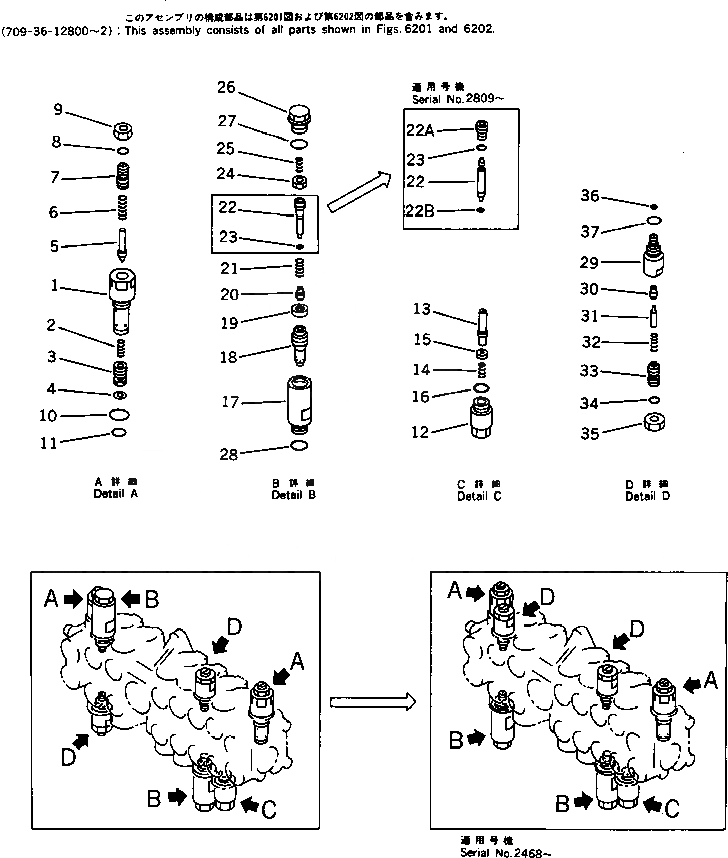

Запчасти Komatsu PC15-2 6-СЕКЦИОНН. УПРАВЛЯЮЩ. КЛАПАН (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ
№
Артикул
Название
Примечание
Количество
|1
709-36-12802
VALVE ASS'Y
|1
709-36-12801
VALVE ASS'Y
|1
709-36-12800
VALVE ASS'Y
|1
700-27-56000
VALVE ASS'Y,RELIEF
1
SLEEVE
2
700-20-51430
SPRING
3
VALVE
4
700-20-51240
RING
5
700-80-61190
POPPET
6
700-20-51350
SPRING
7
700-20-51340
SCREW
8
07000-02011
O-RING
9
01583-11408
NUT
10
07002-02434
O-RING
11
700-22-11410
O-RING
|12
709-30-61100
VALVE ASS'Y,SUCTION
12
709-30-61110
SLEEVE
13
VALVE
14
700-20-62170
SPRING
15
SEAL
16
07002-02034
O-RING
|17
709-30-64500
VALVE ASS'Y,SUCTION AND SAFETY
|17
709-30-62400
VALVE ASS'Y,SUCTION AND SAFETY
17
709-30-62110
SLEEVE
18
VALVE
|18
VALVE
19
SEAL
20
POPPET
|20
POPPET
21
SPRING
22
PISTON
|22
PISTON
22A
SCREW
22B
SEAL
23
O-RING
24
NUT
25
700-20-62170
SPRING
26
709-30-62150
PLUG
27
07002-12034
O-RING
28
07002-02034
O-RING
|29
709-30-65400
VALVE ASS'Y,SAFETY
29
SLEEVE
30
POPPET
|30
POPPET
31
PISTON
32
SPRING
33
SCREW
34
O-RING
35
NUT
36
709-32-11840
O-RING
37
07002-02034
O-RING
Выбрано товаров: 51
