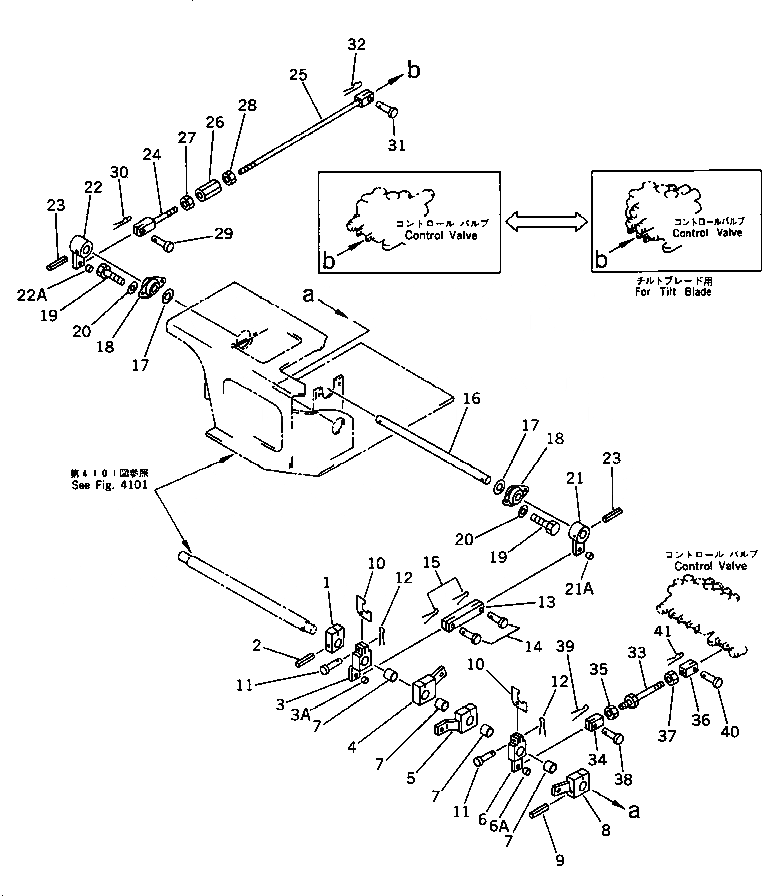

Запчасти Komatsu PC15-2 ПОВОРОТН. И РУКОЯТЬ МЕХ-М УПРАВЛ-Я (ДЛЯ ЯПОН.) (ДЛЯ АЗИИ) СИСТЕМА УПРАВЛЕНИЯ И ОСНОВНАЯ РАМА

1

20N-43-42461

LEVER

|1

20N-43-42460

LEVER

2

04025-00640

PIN,SPRING

|3

20N-43-40180

LEVER ASS'Y

3

LEVER

3A

06600-00805

BUSHING

3

20N-43-42470

LEVER

4

20N-43-42511

LEVER

|4

20N-43-42510

LEVER

5

20N-43-42521

LEVER

|5

20N-43-42520

LEVER

|6

20N-43-40190

LEVER ASS'Y

6

LEVER

6A

06600-00805

BUSHING

6

20N-43-42530

LEVER

7

20N-43-42490

BEARING

|7

20N-43-42480

BUSHING

8

20N-43-42541

LEVER

|8

20N-43-42540

LEVER

9

04025-00640

PIN,SPRING

10

20S-43-31541

PLATE

11

04205-10625

PIN

12

04050-11612

PIN,COTTER

13

20N-43-42561

YOKE

|13

20N-43-42560

YOKE

14

04205-10822

PIN

15

04050-12015

PIN,COTTER

16

20N-43-42610

SHAFT

17

01640-22032

WASHER

18

20N-43-41290

BEARING

19

01010-50820

BOLT

20

01643-30823

WASHER

|21

20N-43-40220

LEVER ASS'Y

21

LEVER

21A

06600-01008

BUSHING

21

20N-43-42630

LEVER

|22

20N-43-40230

LEVER ASS'Y

22

LEVER

22A

06600-01008

BUSHING

22

21U-43-11240

LEVER

23

04025-00640

PIN,SPRING

24

04244-41006

ROD

25

20P-43-11650

ROD

|25

20N-43-47790

ROD,(FOR TILT BLADE)

26

20S-43-31270

BUCKLE,TURN

27

01582-11008

NUT

28

01508-21006

NUT,L.H. THREAD

29

04205-11026

PIN

30

04052-11038

PIN,SNAP

31

04205-10520

PIN

32

04052-10530

PIN,SNAP

33

04248-30815

ROD

34

04211-20844

YOKE

35

01580-10806

NUT

36

20N-43-41260

YOKE,L.H. THREAD

37

01508-20805

NUT,L.H. THREAD

38

04205-10822

PIN

39

04050-12015

PIN,COTTER

40

04205-10520

PIN

41

04052-10530

PIN,SNAP
