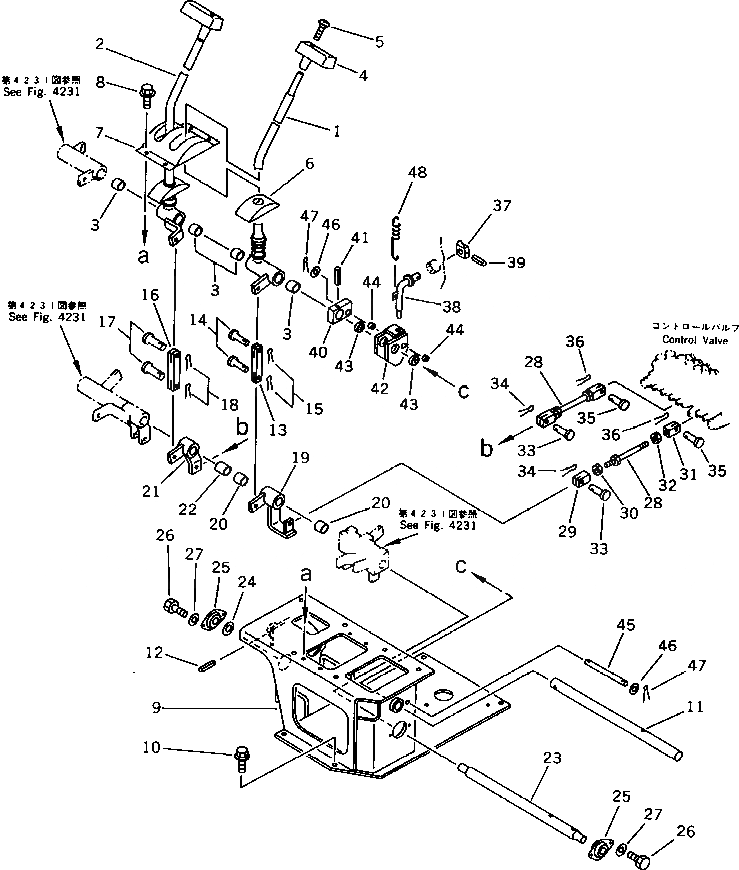

Запчасти Komatsu PC15-2 РЫЧАГ УПРАВЛ-Я ХОДОМ (ДЛЯ ЯПОН.)(№-) СИСТЕМА УПРАВЛЕНИЯ И ОСНОВНАЯ РАМА

1

20N-43-42340

LEVER,L.H.

2

20N-43-42330

LEVER,R.H.

3

09350-02520

BUSHING

4

203-43-41340

KNOB

5

01225-40625

SCREW

6

20S-43-11230

COVER

7

21U-54-11470

COVER

8

01435-00816

BOLT

9

20N-43-42110

BRACKET

10

01435-01020

BOLT

11

20N-43-42310

SHAFT

12

04025-00640

PIN,SPRING

13

20N-43-42591

YOKE

|13

20N-43-42590

YOKE

14

04205-10822

PIN

15

04050-12015

PIN,COTTER

16

20N-43-42550

YOKE

17

04205-11026

PIN

18

04050-13020

PIN,COTTER

19

20N-43-42450

LEVER

20

09350-02520

BUSHING

21

20N-43-42440

LEVER

22

09350-02530

BUSHING

23

20N-43-42411

SHAFT

|23

20N-43-42410

SHAFT

24

01640-22032

WASHER

25

20N-43-41290

BEARING

26

01010-50820

BOLT

27

01643-50823

WASHER

28

04248-30815

ROD

29

04211-20844

YOKE

30

01580-10806

NUT

31

20N-43-41260

YOKE,L.H. THREAD

32

01508-20805

NUT,L.H. THREAD

33

04205-10822

PIN

34

04050-12015

PIN,COTTER

35

04205-10520

PIN

36

04050-10530

PIN,SNAP

37

20S-43-31220

BOSS,LOCK

38

20N-43-42230

LEVER

39

04025-00520

PIN,SPRING

40

20N-43-42350

BLOCK

41

04025-00640

PIN,SPRING

42

20N-43-42360

BRACKET

43

20N-43-42370

BUSHING

44

20S-43-31560

BUSHING

45

20N-43-42380

PIN

46

01641-21016

WASHER

47

04050-13020

PIN,COTTER

48

10E-43-12650

SPRING
