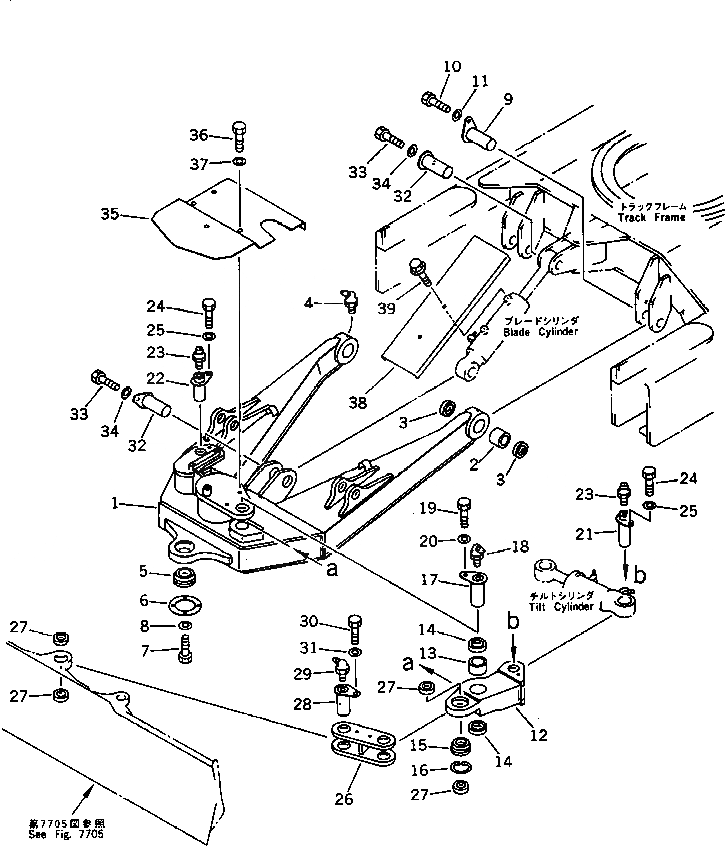

Запчасти Komatsu PC15-2 НАКЛОН. РАМА РАБОЧЕЕ ОБОРУДОВАНИЕ

1

20P-910-2120

FRAME

2

07144-10304

BUSHING

3

07145-00035

SEAL,DUST

4

07020-00675

FITTING,GREASE

5

20P-910-2410

BUSHING

6

20P-910-2510

PLATE

7

01010-50820

BOLT

8

01643-30823

WASHER

9

20N-70-44590

PIN

10

01010-51020

BOLT

11

01643-31032

WASHER

12

20P-910-2140

LEVER

13

07144-10404

BUSHING

14

07145-00040

SEAL,DUST

15

20P-910-2420

BUSHING

16

04065-05520

RING,SNAP

17

20P-910-2630

PIN

18

07020-00900

FITTING,GREASE

19

01010-51225

BOLT

20

01643-31232

WASHER

21

20P-910-2680

PIN

22

20P-910-2670

PIN

23

07020-00000

FITTING,GREASE

24

01010-51016

BOLT

25

01643-31032

WASHER

26

20P-910-2130

LINK

27

20P-910-2540

SPACER

28

20P-910-2620

PIN

29

07020-00900

FITTING,GREASE

30

01010-51016

BOLT

31

01643-31032

WASHER

32

20N-70-44590

PIN

33

01010-51020

BOLT

34

01643-31032

WASHER

35

20P-910-2710

PLATE

36

01010-51020

BOLT

37

01643-31032

WASHER

38

20C-71-11310

COVER

39

01435-00816

BOLT
