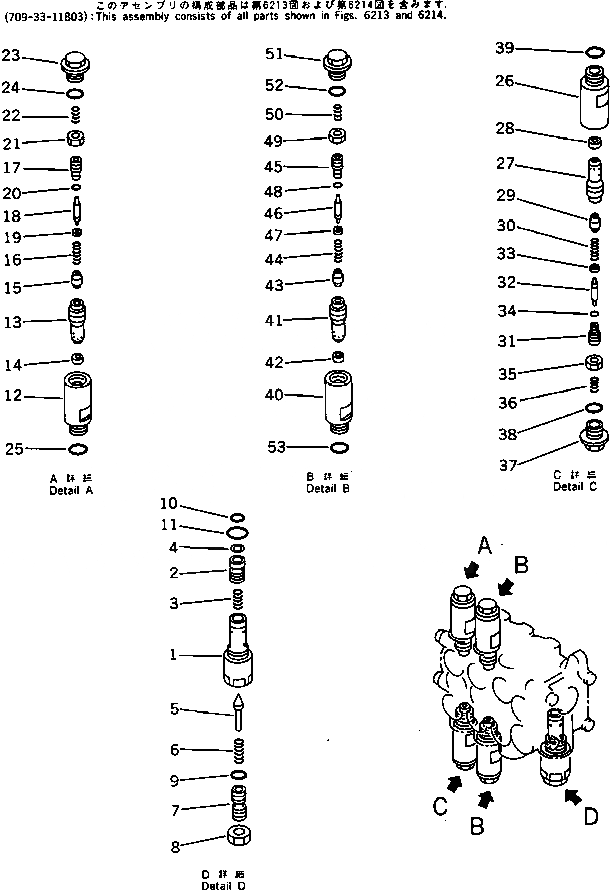

Запчасти Komatsu PC15-2 3-Х СЕКЦИОНН. КОНТРОЛЬН. КЛАПАН (/) (ДЛЯ НАКЛОН. ОТВАЛ) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

709-33-11803

VALVE ASS'Y

|$1

700-22-51001

VALVE ASS'Y,MAIN RELIEF

1

SLEEVE

2

VALVE

3

700-20-51430

SPRING

4

700-20-51240

RING

5

700-80-61190

POPPET

6

700-20-51350

SPRING

7

700-20-51340

SCREW

8

01583-11408

NUT

9

07000-02011

O-RING

10

700-22-11410

O-RING

11

07002-02434

O-RING

|$13

709-30-62201

VALVE ASS'Y,SUCTION AND SAFETY

12

709-30-62110

SLEEVE

13

VALVE

14

SEAL

15

POPPET

16

SPRING

17

SCREW

18

PISTON

19

SEAL

20

O-RING

21

NUT

22

700-20-62170

SPRING

23

709-30-62150

PLUG

24

07002-12034

O-RING

25

07002-02034

O-RING

|$28

709-30-62701

VALVE ASS'Y,SUCTION AND SAFETY

26

709-30-62110

SLEEVE

27

VALVE

28

700-20-71260

SEAL

29

709-30-62221

POPPET

30

709-30-62170

SPRING

31

709-30-62350

SCREW

32

709-30-62340

PISTON

33

709-30-62210

SEAL

34

07000-11007

O-RING

35

700-20-71250

NUT

36

700-20-62170

SPRING

37

709-30-62150

PLUG

38

07002-12034

O-RING

39

07002-02034

O-RING

|$43

709-30-62601

VALVE ASS'Y,SUCTION AND SAFETY

40

709-30-62110

SLEEVE

41

VALVE

42

700-20-71260

SEAL

43

709-30-62221

POPPET

44

709-30-62170

SPRING

45

709-30-62350

SCREW

46

709-30-62340

PISTON

47

709-30-62210

SEAL

48

07000-11007

O-RING

49

700-20-71250

NUT

50

700-20-62170

SPRING

51

709-30-62150

PLUG

52

07002-12034

O-RING

53

07002-02034

O-RING
