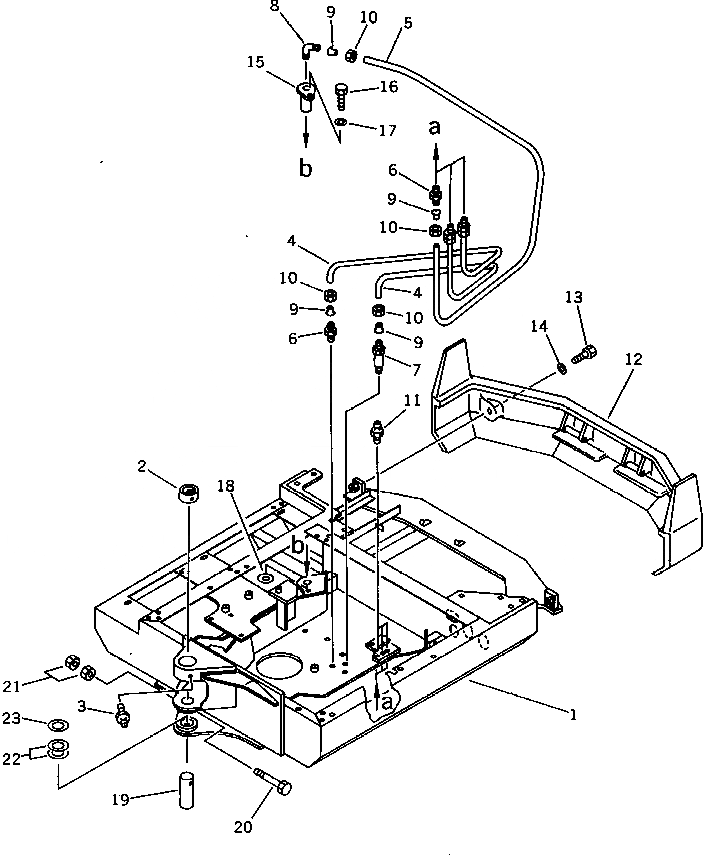

Запчасти Komatsu PC15-2 ОСНОВНАЯ РАМА СИСТЕМА УПРАВЛЕНИЯ И ОСНОВНАЯ РАМА

|$0

20P-46-11500

REVOLVING FRAME A.

|$1

20P-46-13100

REVOLVING FRAME A.,(FOR 6 WAY)

|$2

20P-46-17700

REVOLVING FRAME A.,(FOR TILT BLADE)

1

FRAME,REVOLVING

1

FRAME,REVOLVING (FOR 6 WAY)

1

FRAME,REVOLVING (FOR TILT BLADE)

2

20N-70-44130

BUSHING

3

07020-00000

FITTING,GREASE

4

20N-46-41590

TUBE

5

20N-46-41221

TUBE

6

20R-46-11160

CONNECTOR

7

20N-46-41231

CONNECTOR

8

20R-46-11150

ELBOW

9

07831-00411

SLEEVE

10

07832-00410

NUT,SLEEVE

11

07020-00000

FITTING,GREASE

12

20P-46-11551

WEIGHT,COUNTER

13

01010-51685

BOLT

14

01643-31645

WASHER

15

20N-70-44580

PIN

16

01010-51020

BOLT

17

01643-31032

WASHER

18

20N-70-41270

SPACER, 1.0MM

19

20N-70-44550

PIN

20

01011-51430

BOLT

21

01580-11411

NUT

22

20N-70-44160

SPACER, 1.0MM

23

20N-70-44170

SPACER, 0.5MM
