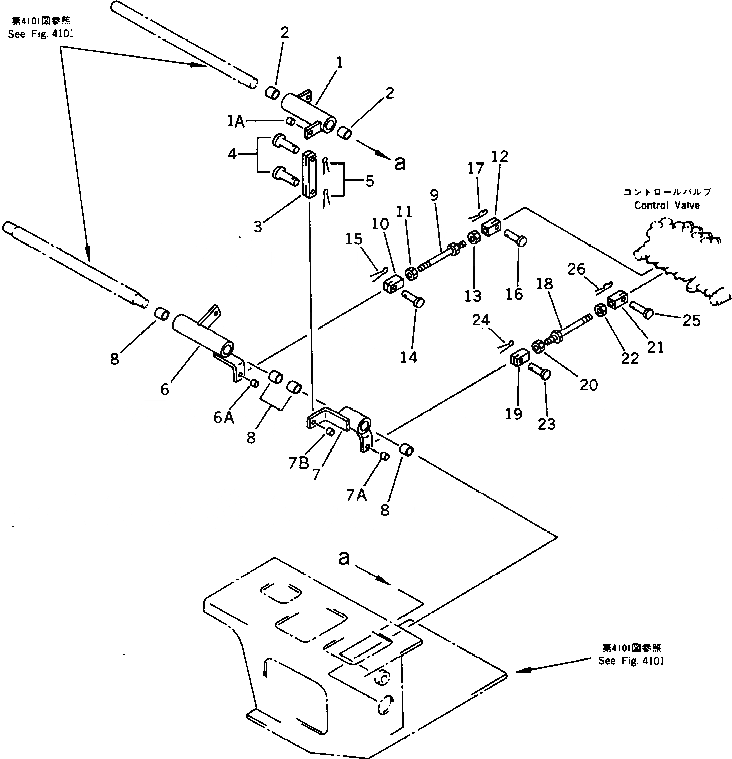

Запчасти Komatsu PC15-2 СТРЕЛА И КОВШ МЕХ-М УПРАВЛ-Я (ДЛЯ ЯПОН.) (ДЛЯ АЗИИ) СИСТЕМА УПРАВЛЕНИЯ И ОСНОВНАЯ РАМА

|$0

20N-43-40110

LEVER ASS'Y

1

LEVER

1A

06600-01008

BUSHING

1

20N-43-42320

LEVER

2

195-61-34140

BEARING

2

09350-02520

BUSHING

3

20N-43-42551

YOKE

3

20N-43-42550

YOKE

4

04205-11026

PIN

5

04050-13020

PIN,COTTER

|$10

20N-43-40140

LEVER ASS'Y

6

20N-43-42421

LEVER

6A

06600-01008

BUSHING

6

20N-43-42420

LEVER

|$14

20N-43-40150

LEVER ASS'Y

7

20N-43-42431

LEVER

7A

06600-00805

BUSHING

7B

06600-01008

BUSHING

7

20N-43-42430

LEVER

8

195-61-34140

BEARING

8

09350-02520

BUSHING

9

04248-31015

ROD

10

04220-21040

YOKE,L.H. THREAD

11

01508-21006

NUT,L.H. THREAD

12

20S-43-21570

YOKE

13

01582-11008

NUT

14

04205-11026

PIN

15

04050-13020

PIN,COTTER

16

04205-10520

PIN

17

04052-10530

PIN,SNAP

18

04248-30815

ROD

19

04211-20844

YOKE

20

01580-10806

NUT

21

20N-43-41260

YOKE,L.H. THREAD

22

01508-20805

NUT,L.H. THREAD

23

04205-10822

PIN

24

04050-12015

PIN,COTTER

25

04205-10520

PIN

26

04052-10530

PIN,SNAP
