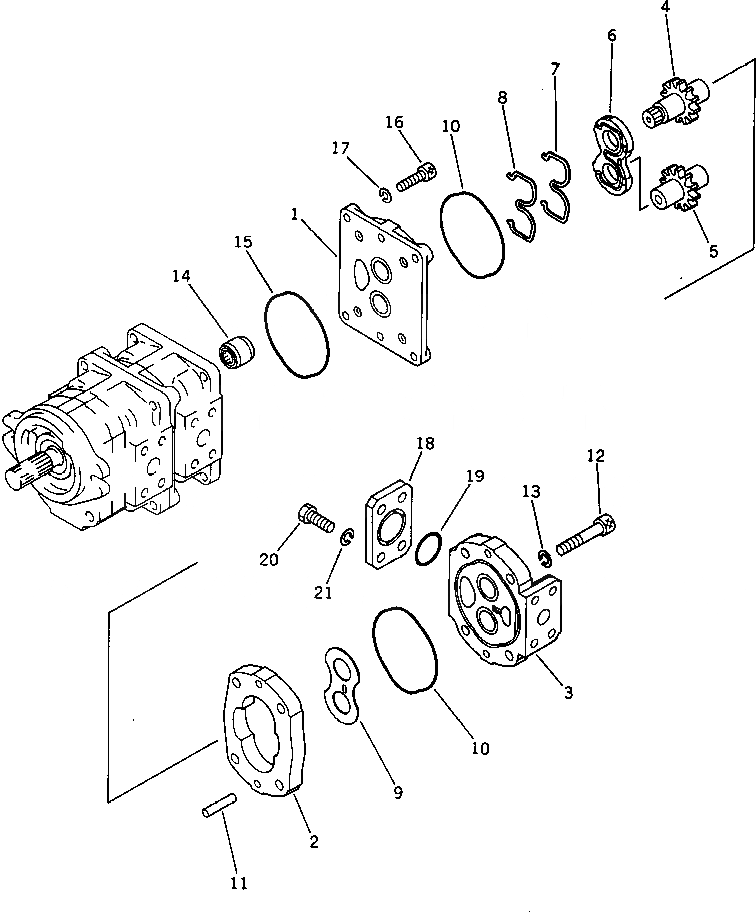

Запчасти Komatsu PC15-1 ГИДР. НАСОС. (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

705-86-14021

PUMP ASS'Y

|1

705-64-19531

PUMP ASS'Y,(LAR6)

1

BRACKET ASS'Y

2

CASE,GEAR

3

COVER ASS'Y

4

GEAR,DRIVE

5

705-68-19510

GEAR,DRIVEN

6

705-17-01610

PLATE,SIDE

7

705-17-01470

SEAL,SEAL

8

705-67-01440

RING,BACK-UP

9

705-67-01640

PLATE,SIDE

10

705-17-01381

O-RING

11

705-67-01910

PIN,DOWEL

12

01252-31050

BOLT

13

01602-21030

WASHER,SPRING

14

705-67-01330

COUPLING ASS'Y

15

705-17-01381

O-RING

16

01252-30830

BOLT

17

01602-20825

WASHER,SPRING

18

705-17-01880

PLATE

19

07000-03032

O-RING

20

01010-51025

BOLT

21

01602-21030

WASHER,SPRING
