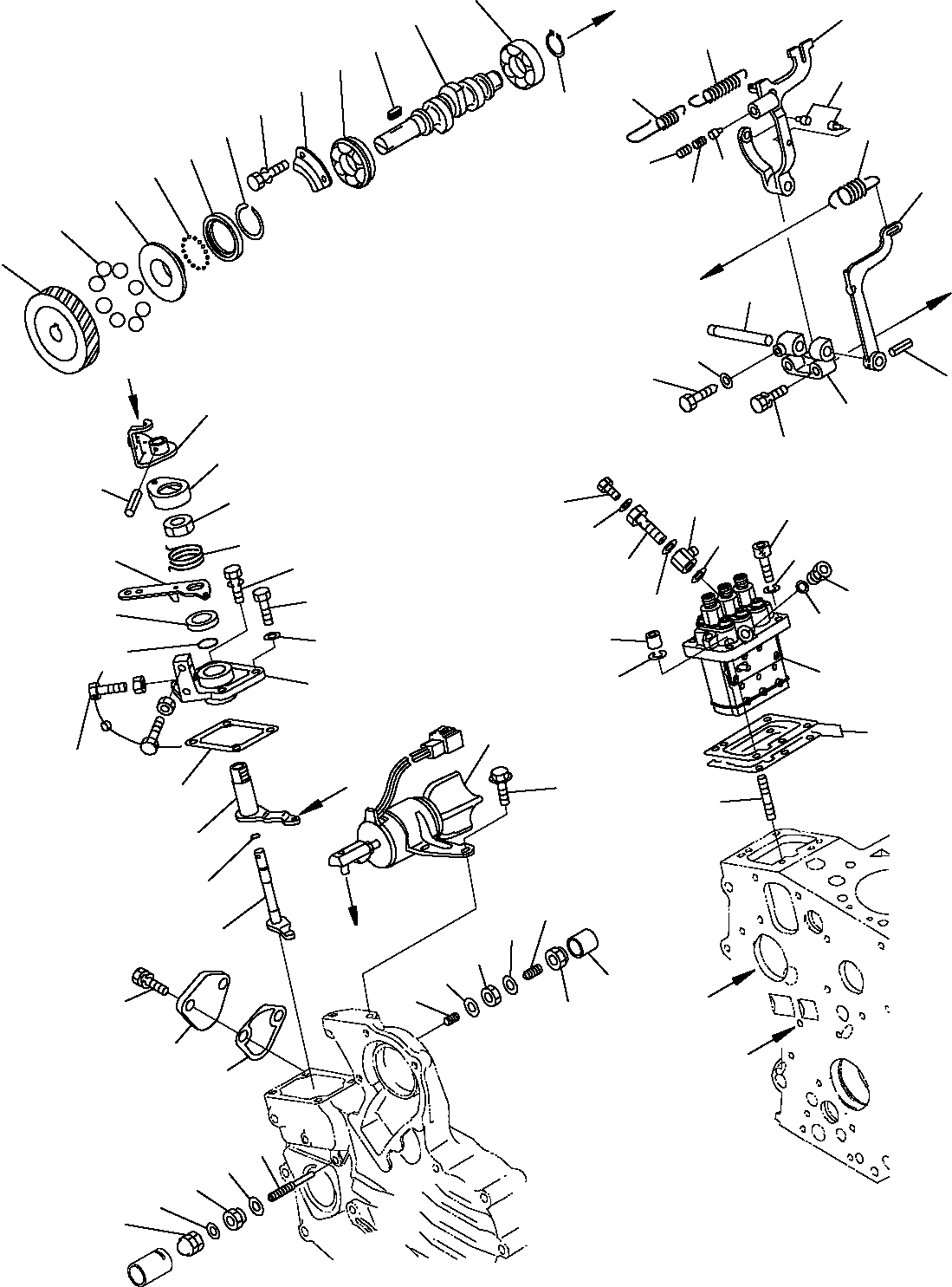

Запчасти Komatsu PC14R-2 ТОПЛ. НАСОС ДВИГАТЕЛЬ
№
Артикул
Название
Примечание
Количество
\0
22J-01-R5101
ENGINE, ASSY.
\0
KT16861-1602-3
CAMSHAFT ASSY.
1
KT15875-1617-3
CAMSHAFT
2
KT08153-06203
BEARING
3
KT16851-5115-0
GEAR
4
KT05712-00515
KEY
5
KT15841-5545-0
SLEEVE
6
KT15841-5569-0
RING
7
KT07715-00801
BALL
8
KT15261-5547-0
RING, SNAP
9
KT07715-03217
BALL
10
KT16871-9730-0
BEARING
11
KT04612-00170
RING, SNAP
12
KT15841-1632-0
STOPPER
13
KT01023-50612
BOLT
\13
KT15841-5409-2
ADJUSTER
14
KT15841-5410-0
BOLT
15
KT15261-9202-0
NUT
16
KT15841-5422-0
NUT
17
KT15021-3366-0
GASKET
18
KT15841-5427-0
PLUG
19
KT15841-5412-3
BOLT
20
KT1G031-5421-0
NUT, STOP
21
KT15601-9665-0
GASKET
22
KT1G021-9665-0
GASKET
23
KT15841-9233-0
NUT
24
KT1G386-6001-0
SOLENOID
25
KT01754-50612
BOLT
26
KT16809-9568-0
JOINT
27
KT16006-5101-0
INJECTION PUMP, ASSY.
28
KT15841-5132-0
SCREW
29
KT15841-9665-0
GASKET
30
KT15841-5131-0
SCREW
31
KT15841-9666-0
GASKET
32
KT16030-9601-0
PLUG
33
KT15861-9665-0
GASKET
34
KT16006-5209-2
SHIM, 0.200 mm
34
KT16006-5211-2
SHIM, 0.250 mm
34
KT16006-5212-2
SHIM, 0.300 mm
35
KT01311-10620
BOLT
36
KT15841-9150-0
STUD
37
KT15841-9232-0
NUT
38
KT04512-60060
SPRING WASHER
39
KT16851-5648-0
SPRING
40
KT17563-5641-0
SPRING
41
KT17563-5642-0
SPRING
42
KT1G386-5605-0
LEVER, ASSY.
43
KT16000-5423-0
SPRING
44
KT17563-5606-0
LEVER
45
KT15841-5615-0
SHAFT
46
KT05411-00318
SPRING PIN
47
KT15261-6641-0
BOLT
48
KT04512-60050
SPRING WASHER
49
KT15841-5623-0
SUPPORT
50
KT01023-50635
BOLT
51
KT1G639-5700-0
PLATE
52
KT15841-5711-2
PLATE
53
KT15841-5611-2
LEVER
54
KT19280-5724-0
COLLAR
55
KT04814-10160
O-RING
56
KT1G639-5715-0
LEVER
57
KT16866-9201-0
NUT
58
KT16878-5774-2
SHAFT
59
KT16851-5772-3
LEVER
60
KT05411-00314
PIN
61
KT04814-10070
O-RING
62
KT16878-5792-0
SPRING
63
KT16866-5730-2
PLUG
64
KT15841-5721-2
GASKET
65
KT01023-50618
BOLT
66
KT01053-50618
BOLT
67
KT15601-9665-0
GASKET
68
KT15852-5285-0
COVER
69
KT16264-5214-0
GASKET
70
KT01023-50616
BOLT
Выбрано товаров: 75
