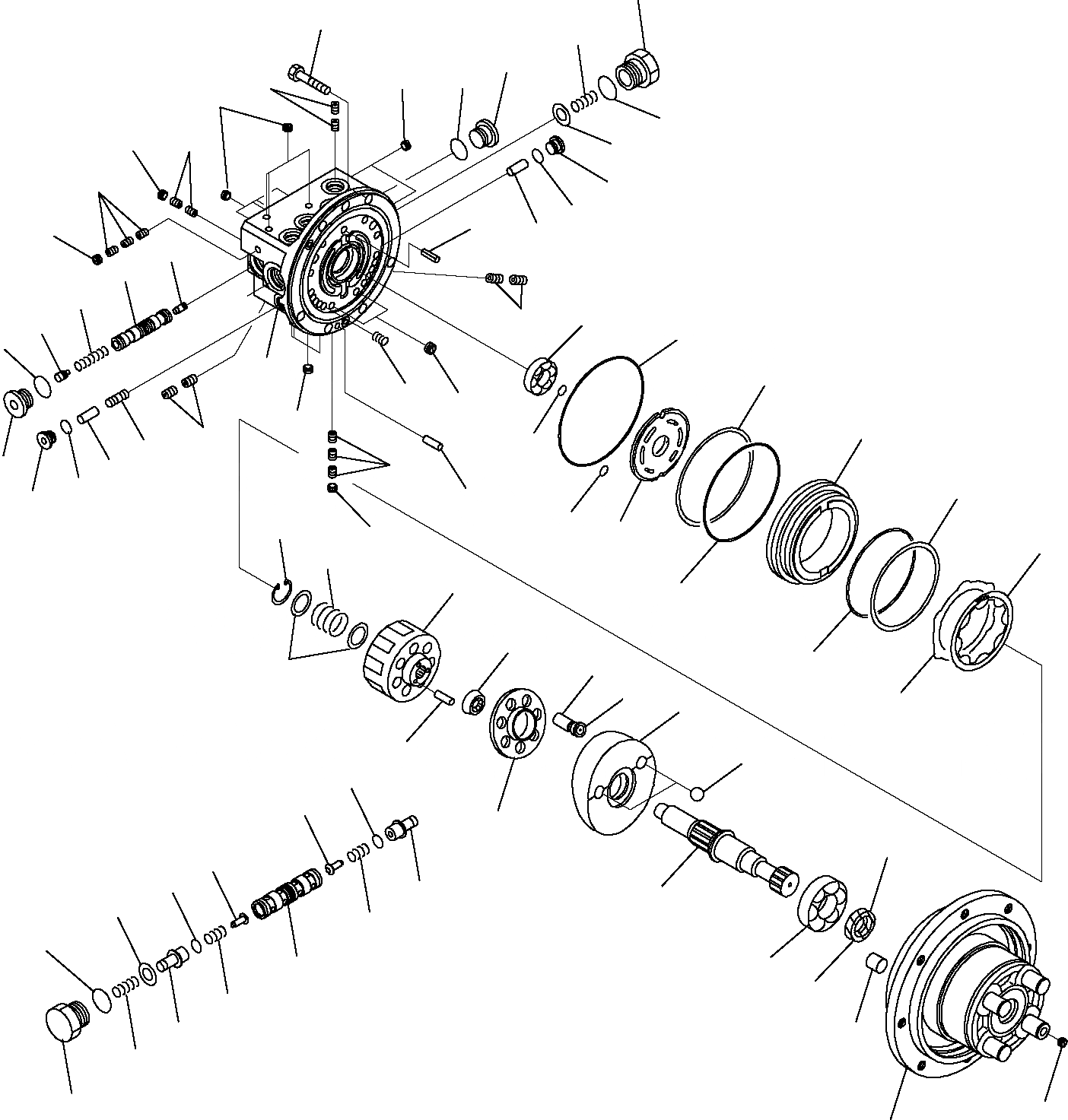

Запчасти Komatsu PC14R-2 МОТОР ХОДА (С ХОД INCREMENT) (ТИП PHV-B-B-PT-889B) (/) РАБОЧЕЕ ОБОРУДОВАНИЕ ГИДРАВЛИКА

\0

20W-60-91501

TRAVEL MOTOR

\0

FUMHB28517

HUB, ASSY.

1

HUB

2

PISTON

3

GASKET

4

PLUG

\4

FUMVN101037

SHAFT, ASSY.

5

SHAFT

6

FU16004

BEARING

\6

FUMHCB14841

CYLINDER, ASSY

7

CYLINDER

8

PLATE

9

PISTON

10

SLIDE

11

HOLDER

12

HOLDER

13

PIN

14

SPRING

15

CYLINDER

16

FURH28

RING, SNAP

17

FUMV68101T43

PLATE

\17

FUMHB07BAC4244

HOUSING, ASSY

18

FU6201

BEARING

19

FUPPSW5X12

PIN

20

BODY

21

SPOOL

22

REGISTER VALVE

23

SPRING GUIDE

24

SPOOL

25

SPOOL

26

SPOOL

27

SPOOL

28

SPRING

29

SPRING

30

SPRING

31

PLUG

32

PLUG

33

PLUG

34

RING

35

PLUG

36

FUROP1890

O-RING

37

O-RING

38

FUROP1490

O-RING

39

FUROP1890

O-RING

40

PLUG

41

PLUG

42

PIN

\42

FUMVS20200P

KIT, GASKET

43

FUROG10590

O-RING

44

FUROP690

O-RING

45

O-RING

46

FUROG9590

O-RING

47

FUROG9090

O-RING

48

FURB0G95

O-RING

49

FURB0G90

O-RING

50

FUROP890

O-RING

51

FUROP1490

O-RING

52

FUROP1890

O-RING

53

FUYB15/32

BALL

54

FUTH8X20

SCREW

55

FUPPH76X14

PIN

56

FUFZS2082282

PISTON

57

FUFZS2082291

SPRING

58

FUFZD4679136

DISK

59

FUFZS2082372

DISK
