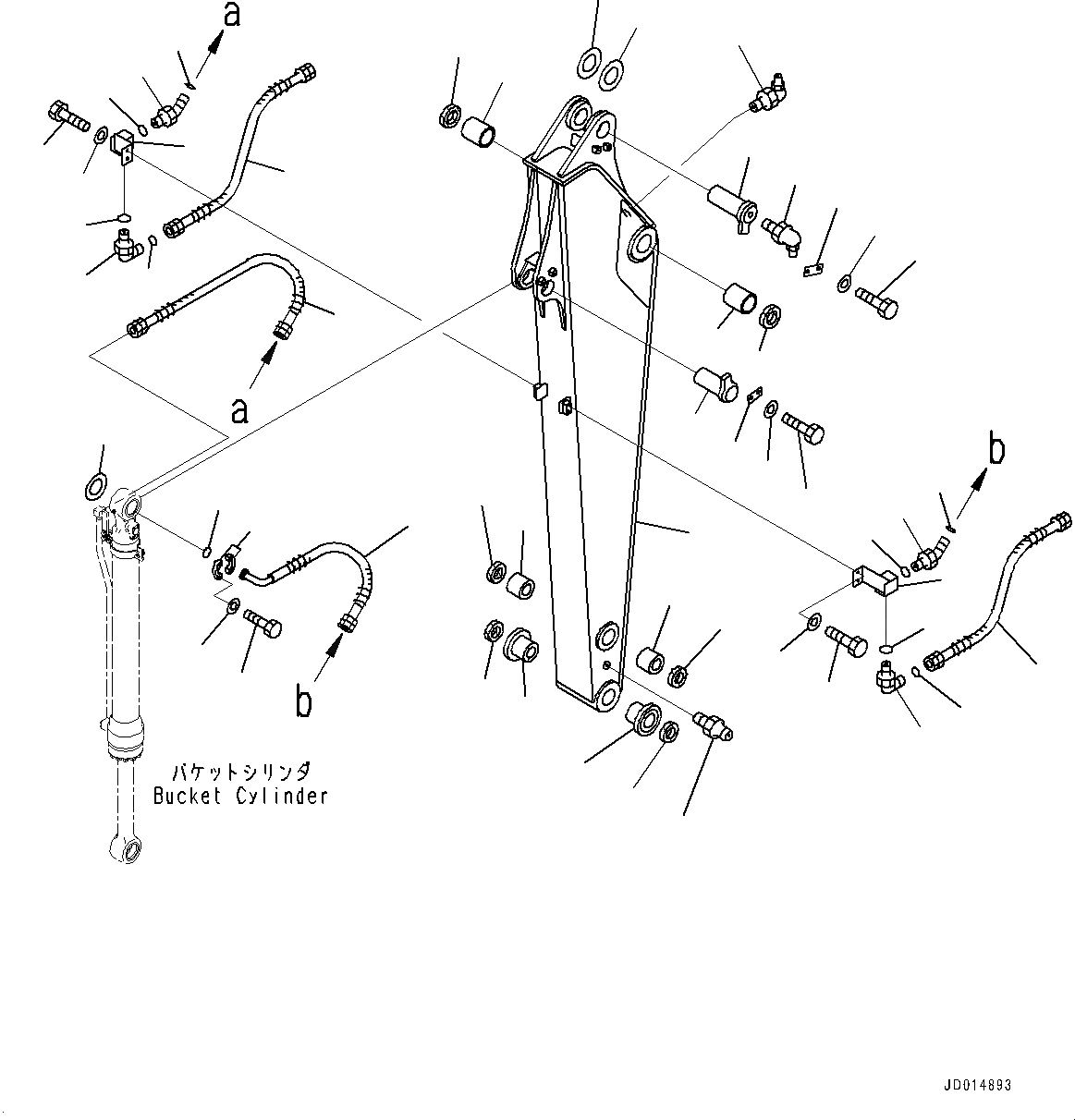

Запчасти Komatsu PC138USLC-8 РУКОЯТЬ, РУКОЯТЬ И ЦИЛИНДР КОВША ТРУБЫ (№-) РУКОЯТЬ, MM

|$0

22B-944-0032

Arm Assembly

|$1

22B-944-0031

Arm Assembly

1

Arm

1

Arm

2

203-70-72210

Bushing

3

203-70-42182

Bushing

4

22B-70-23670

Bushing

5

07020-00900

Fitting, Grease

6

07020-00000

Fitting, Grease

7

22B-70-12230

Seal, Dust

8

21W-70-41440

Seal, Dust

9

203-70-42121

Pin

10

205-70-66580

Plate

11

01010-81230

Bolt

12

01643-31232

Washer

13

21Y-70-14790

Spacer, T=1.0mm

14

21Y-70-14820

Spacer, T=2.0mm

15

07020-00675

Fitting, Grease

16

202-70-52121

Pin

17

21Y-70-14710

Spacer, T=1.0mm

18

205-70-66580

Plate

19

01010-81230

Bolt

20

01643-31232

Washer

21

02756-20513

Hose, Face Seal Type

22

02756-20413

Hose, Face Seal Type

23

203-943-5620

Elbow,L.H.

24

203-943-5130

Elbow,R.H.

25

01010-81020

Bolt

26

01643-31032

Washer

27

02782-10422

Elbow

28

02783-10422

Elbow

29

02896-11012

O-ring

30

02783-10522

Elbow

31

02782-10522

Elbow

32

02896-11015

O-ring

33

07002-12034

O-ring

34

07002-12434

O-ring

35

02756-20407

Hose, Face Seal Type

36

22B-62-24440

Hose

37

07371-30500

Flange, Split

38

01010-80830

Bolt

39

01643-50823

Washer

40

07000-13022

O-ring
