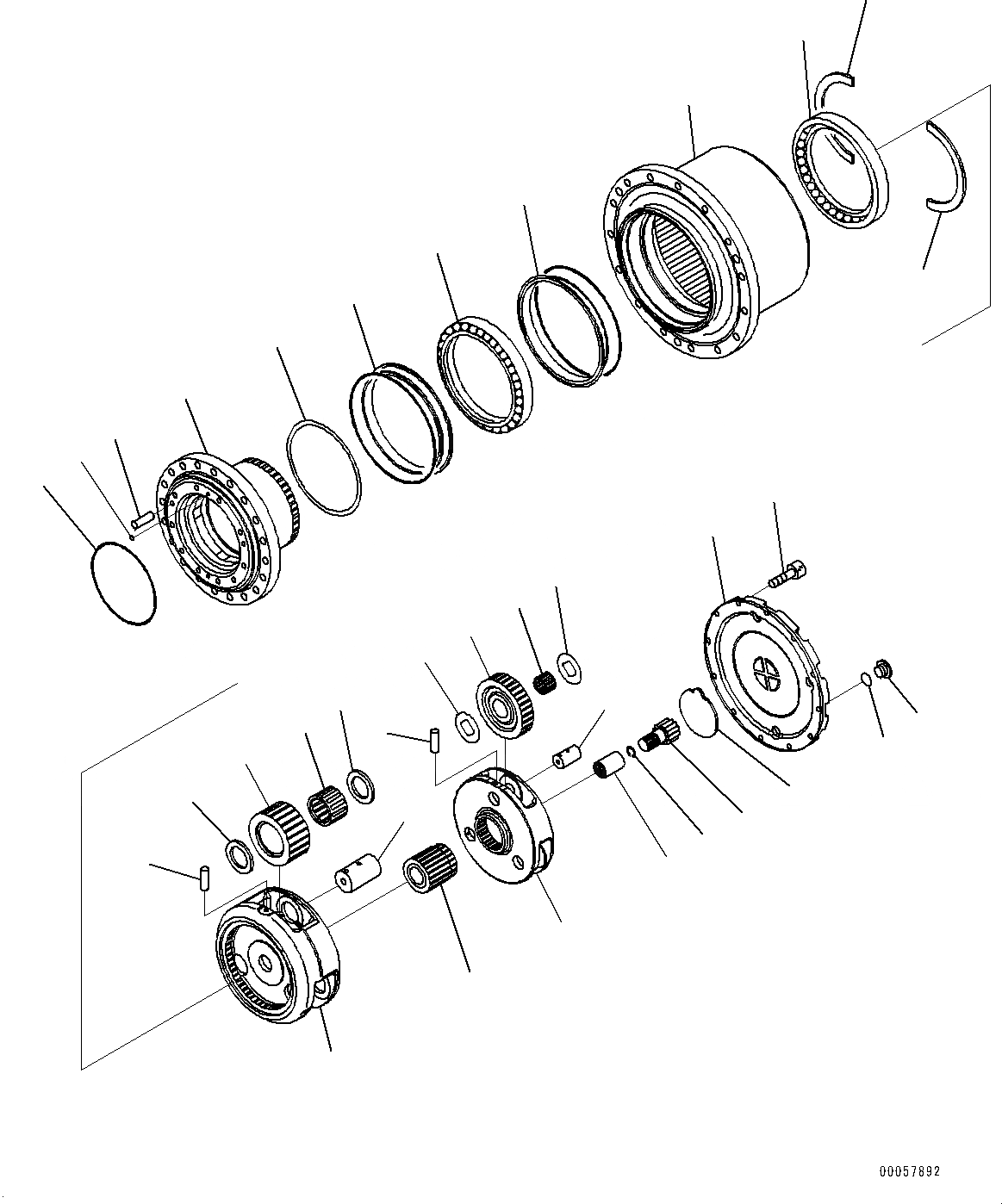

Запчасти Komatsu PC138USLC-8 КОНЕЧНАЯ ПЕРЕДАЧА, ВНУТР. ЧАСТИ, МОТОР ХОДА (/) (№-) КОНЕЧНАЯ ПЕРЕДАЧА

|$0

22B-60-22112

Motor Assembly

|$1

22B-60-22111

Motor Assembly

|$2

22B-60-22110

Motor Assembly

|$3

TZ600D1000-011

Reduction Assembly

|$4

TZ600D1000-01

Reduction Assembly

|$5

TZ600D1103-01

Carrier Assembly

1

Carrier

2

Gear Assembly

3

Pin

4

Washer, Thrust

5

Pin

6

Bearing

6

TZ600D1107-011

Carrier Assembly

6

TZ600D1107-01

Carrier Assembly

7

Carrier

7

Carrier

8

Gear Assembly

9

Pin

10

Washer, Thrust

11

Pin

12

Bearing

12

TZ209-234-42BA

Seal Ring Kit

13

Seal Ring

14

TZ600D1001-02

Hub

15

TZ600D1002-00

Spindle

16

TZ600D1004-02

Gear, Sun

17

TZ600D1008-00

Gear, Sun

18

TZ800D1013-00

Plate

19

TZ600D1014-01

Cover

20

TZ600D1015-01

Coupling

21

TZ600D1022-00

Washer, Lock

22

TZ600D1023-00

Shim Kit, 12 Kind(s)

23

TZ600D1024-01

Bearing

24

TZ610B2021-00

Plug

25

07000-12018

O-ring, (Kit : K01)

26

TZARP568261-70

O-ring, (Kit : K01)

27

07000-11007

O-ring, (Kit : K01)

28

TZ263B2077-01

Pin

29

01252-31035

Bolt, Hexagon Socket Head

30

04065-02210

Ring
