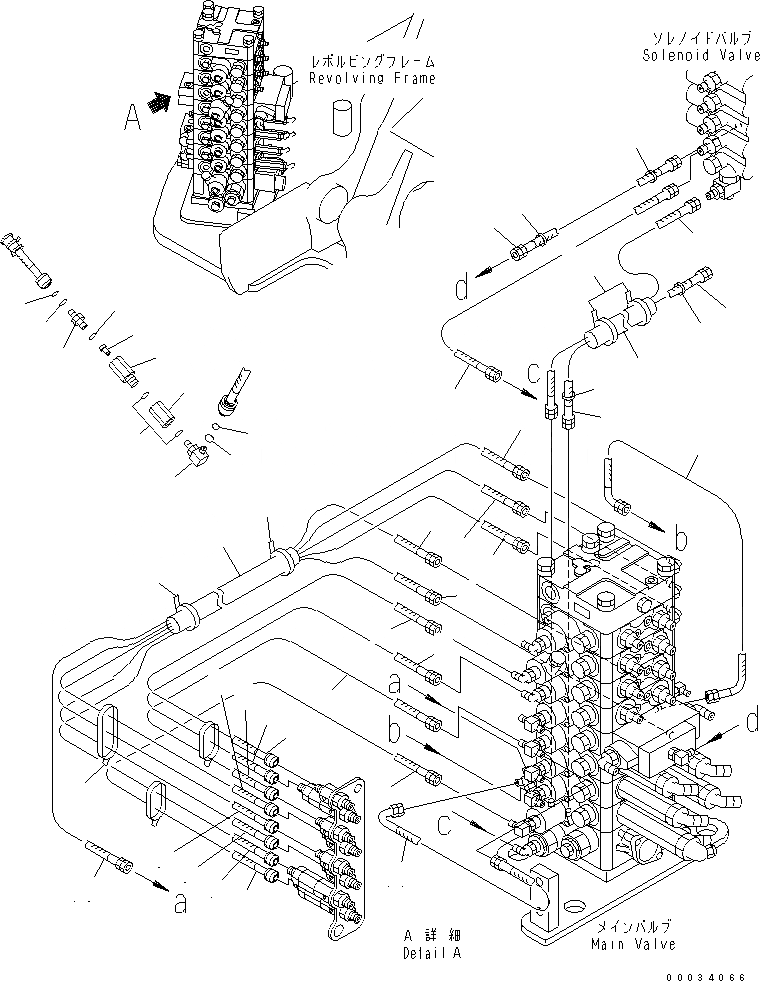

Запчасти Komatsu PC138USLC-2 РАСПРЕДЕЛИТ. КЛАПАН ( WAY PATTERN) (ОСНОВН. КЛАПАН ШЛАНГИ И КРЕПЛЕНИЕ ШЛАНГОВ) (/) ГИДРАВЛИКА

1

22B-62-18990

HOSE, 1100MM,BROWN

1

21U-62-34780

BAND, BROWN

2

22B-62-18990

HOSE, 1100MM,BLUE

2

21U-62-34750

BAND, BLUE

3

22B-62-18160

HOSE,ORANGE

3

21U-62-34740

BAND, ORANGE

4

22B-62-18160

HOSE,YELLOW

4

21U-62-34710

BAND, YELLOW

5

22B-62-18170

HOSE,GREEN

5

21U-62-34730

BAND, GREEN

6

22B-62-18170

HOSE,BLACK

6

21U-62-34720

BAND, BLACK

7

22B-62-18980

HOSE, 400MM,RED

7

21U-62-34760

BAND, RED

8

22B-62-18980

HOSE, 400MM,WHITE

8

21U-62-34770

BAND, WHITE

9

22B-62-18150

HOSE,BLUE-WHITE

9

21U-62-34750

BAND, BLUE

9

21U-62-34770

BAND, WHITE

10

203-62-57930

MARK, 3

11

02760-003A4

HOSE,BLUE-WHITE

11

21U-62-34750

BAND, BLUE

11

21U-62-34770

BAND, WHITE

12

203-62-57920

MARK, 2

13

02760-003A5

HOSE,RED-GREEN

13

21U-62-34760

BAND, RED

13

21U-62-34730

BAND, GREEN

14

02760-002A7

HOSE, 750MM,GREEN-GREEN

14

21U-62-34730

BAND, GREEN

15

02760-002A6

HOSE

16

02761-00205

HOSE

17

02761-00203

HOSE

18

22B-62-11320

PLATE

19

08034-20536

BAND

|$44

22B-62-11400

VALVE ASS'Y,BROWN

|$45

203-60-62401

VALVE ASS'Y

20

07002-01423

O-RING

21

20Y-62-22410

NIPPLE

22

201-60-11390

O-RING

23

20Y-62-19560

O-RING

24

20Y-60-22350

BODY

25

203-60-62430

POPPET

26

20Y-62-22271

ELBOW

27

201-60-11390

O-RING

28

20Y-62-19560

O-RING

29

22B-62-15710

BODY

30

07002-11423

O-RING
