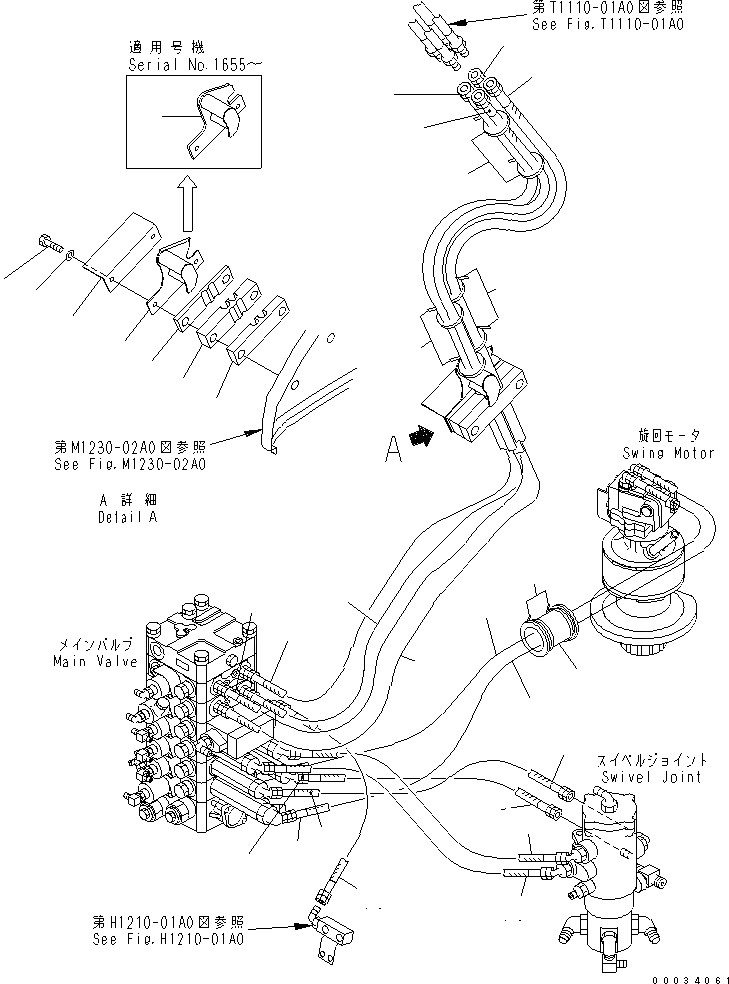

Запчасти Komatsu PC138USLC-2 ГИДРОЛИНИЯ РУКОЯТИ И КОВША(/) ГИДРАВЛИКА

1

22B-62-19310

HOSE, 2475MM

1

21U-62-34740

BAND, ORANGE

2

22B-62-19320

HOSE, 2450MM

2

21U-62-34730

BAND, GREEN

3

22B-62-19330

HOSE, 2335MM

3

21U-62-34760

BAND, RED

4

22B-62-19340

HOSE, 2240MM

4

21U-62-34750

BAND, BLUE

5

22B-62-14262

CUSHION

6

22B-62-14252

CUSHION

7

22B-62-11432

CUSHION

8

22B-62-11772

CLAMP

9

01010-81240

BOLT

9

01010-81235

BOLT

10

01643-31232

WASHER

11

22B-62-11821

BRACKET

11

22B-62-11820

BRACKET

12

08034-20834

BAND

13

22B-62-17610

HOSE

13

21U-62-34720

BAND, BLACK

13

21U-62-34710

BAND, YELLOW

14

22B-62-17610

HOSE

14

21U-62-34740

BAND, ORANGE

14

21U-62-34710

BAND, YELLOW

15

22B-62-17620

HOSE

15

21U-62-34730

BAND, GREEN

15

21U-62-34710

BAND, YELLOW

16

22B-62-17631

HOSE

16

22B-62-17630

HOSE

16

21U-62-34780

BAND, BROWN

16

21U-62-34710

BAND, YELLOW

17

22B-62-17651

HOSE

17

22B-62-17650

HOSE

17

21U-62-34780

BAND, BROWN

18

22B-62-17661

HOSE

18

22B-62-17660

HOSE

18

21U-62-34770

BAND, WHITE

19

22B-62-17670

HOSE

19

21U-62-34720

BAND, BLACK

20

07095-01245

CUSHION

21

08034-20823

BAND
